Coolant Recovery Container-Installation

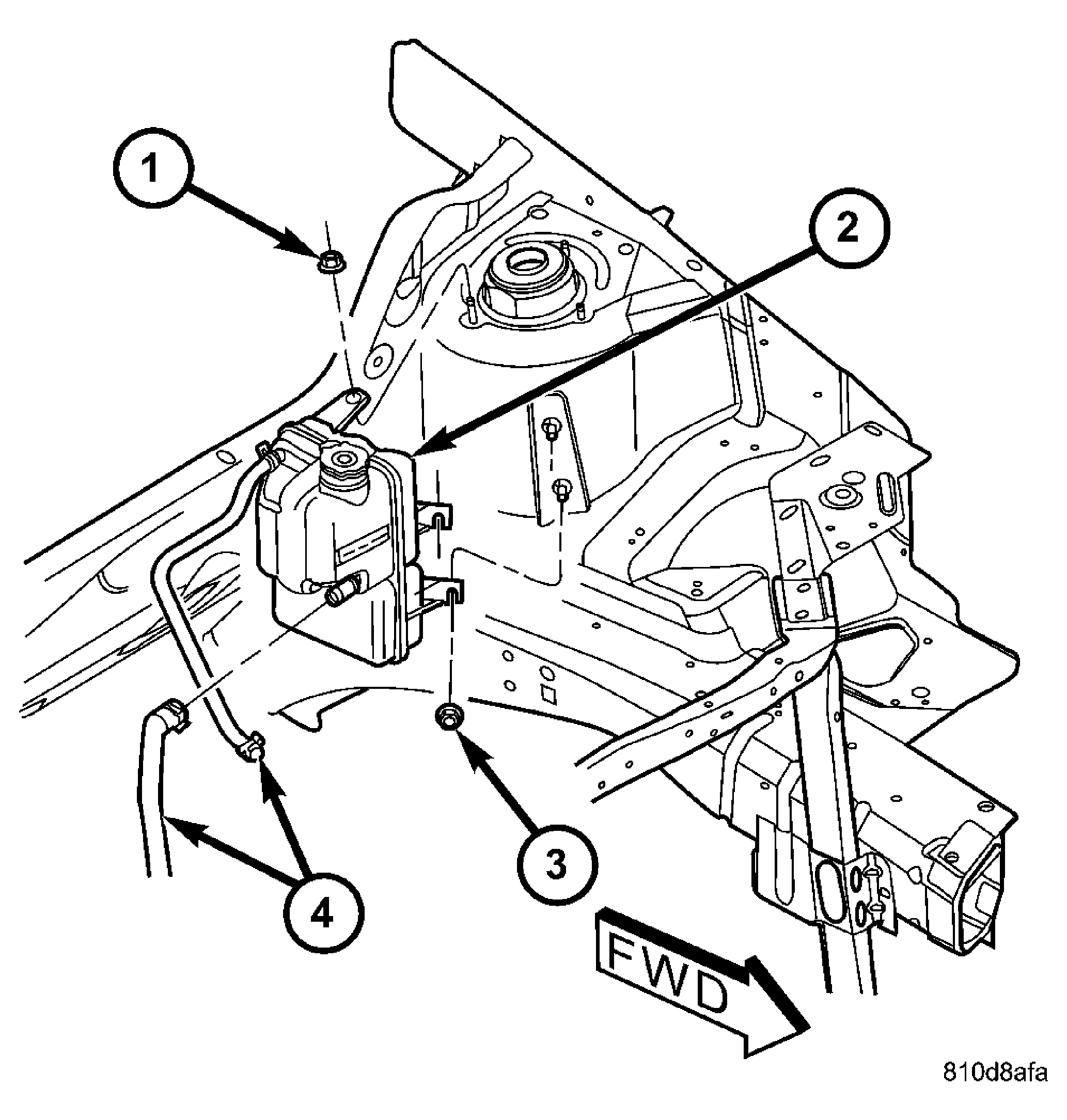

| 1 - UPPER RETAINING NUT |
| 2 - COOLANT RECOVERY CONTAINER |
| 3 - LOWER RETAINING NUTS |
| 4 - SUPPLY AND RETURN HOSES |
- Connect the supply and return hoses to coolant recovery container.
- Position the recovery container on the frame rail.
- Install the upper attaching screw and tighten to 7 N.m (60 in. lbs.).
- Raise the vehicle on hoist.
- Install the lower attaching screws and tighten to 8.5 N.m (75 in. lbs.).
- Lower the vehicle.
- Add coolant to container as necessary. See STANDARD PROCEDURE .
