Radiator DRAINCOCK-Removal

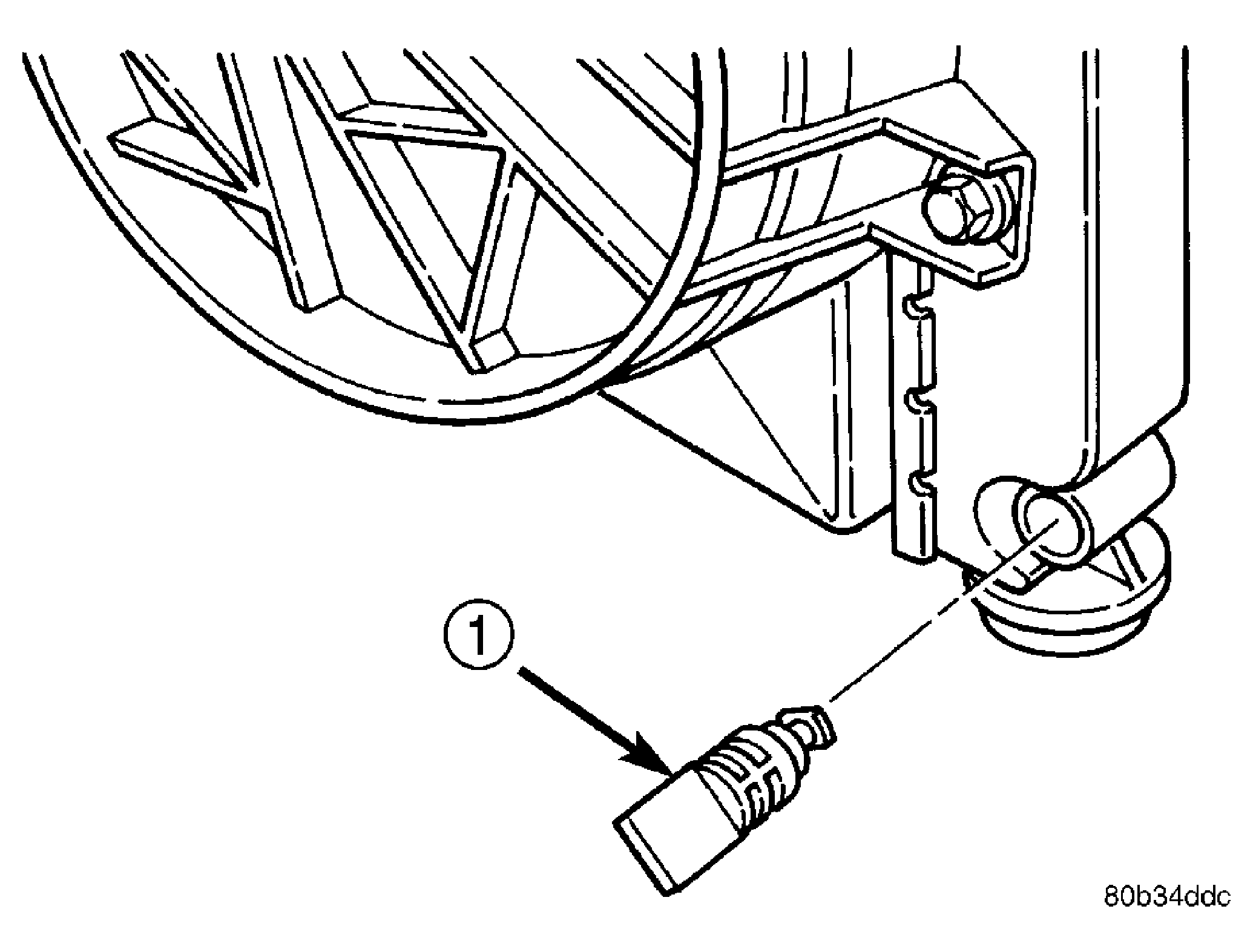

| 1 - DRAINCOCK ASSEMBLY |
WARNING:
Do not remove the cylinder block plug or the radiator draincock with the system hot and under pressure because serious burns from coolant can occur.
CAUTION:
Use of pliers on draincock is not recommended. Damage may occur to part. Draincock should not be removed unless leakage is observed.
- Drain the cooling system. See STANDARD PROCEDURE .
- Turn the draincock stem counterclockwise 180 degrees to the 9:00 o'clock position.
- With the stem at the 9:00 o'clock position, pull the draincock assembly from the radiator tank.
