Radiator Fan Relay-Removal

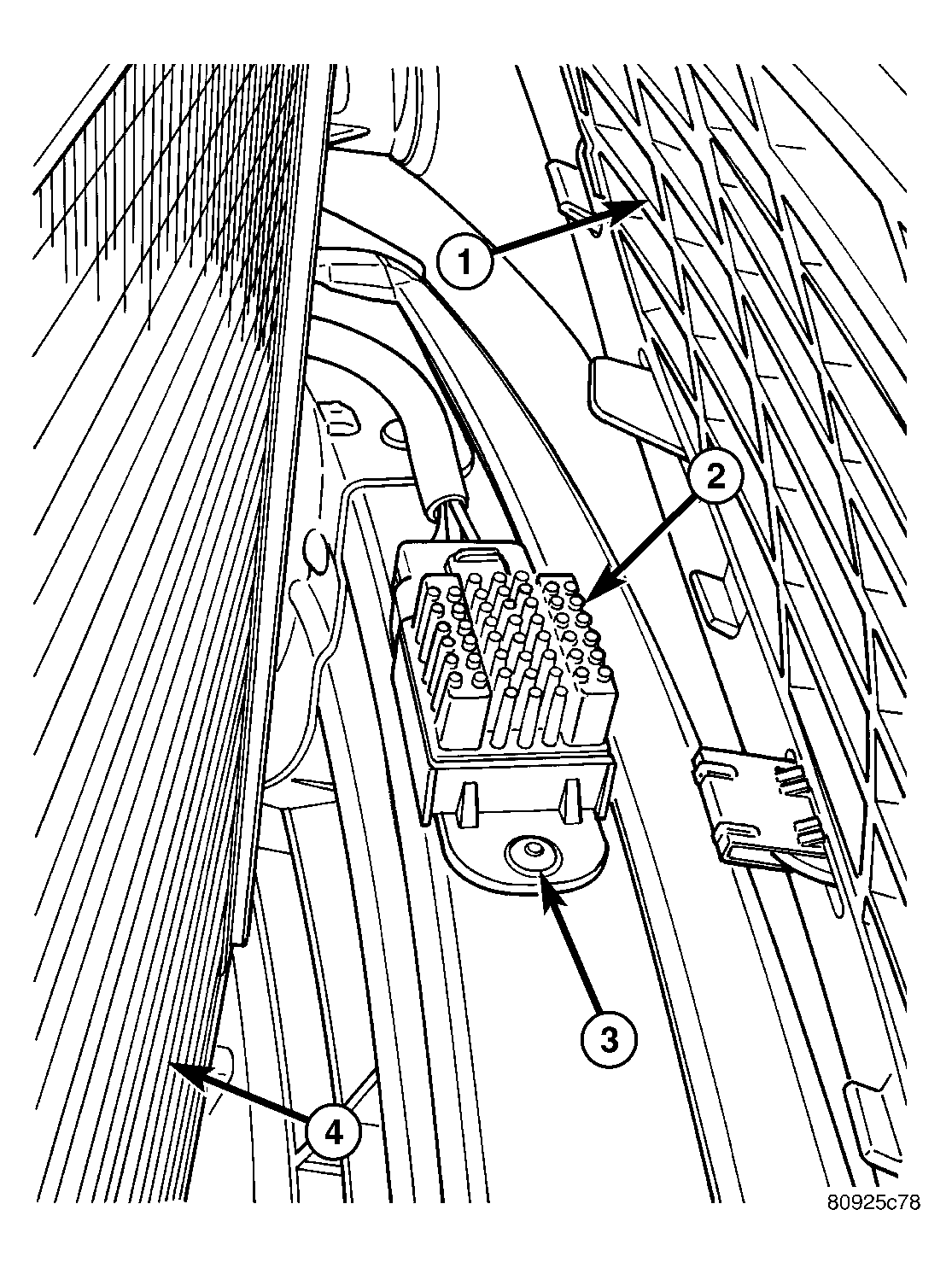

| 1 - FRONT FASCIA |
| 2 - FAN RELAY |
| 3 - RIVET |
| 4 - A/C CONDENSER (FRONT SIDE) |
- Open hood.
- Disconnect and isolate the battery negative cable.
- Partially remove the front fascia to gain access to the radiator fan relay. Refer to REMOVAL .
- Disconnect the relay electrical connector.
- Remove the rivet attaching the relay to the front bumper beam.
- Remove the relay.
