Home >> Chrysler >> 2007 >> Pacifica Limited, AWD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P2112 To P2271 >> P2181-Cooling System Performance >> Circuit Schematic
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Circuit Schematic

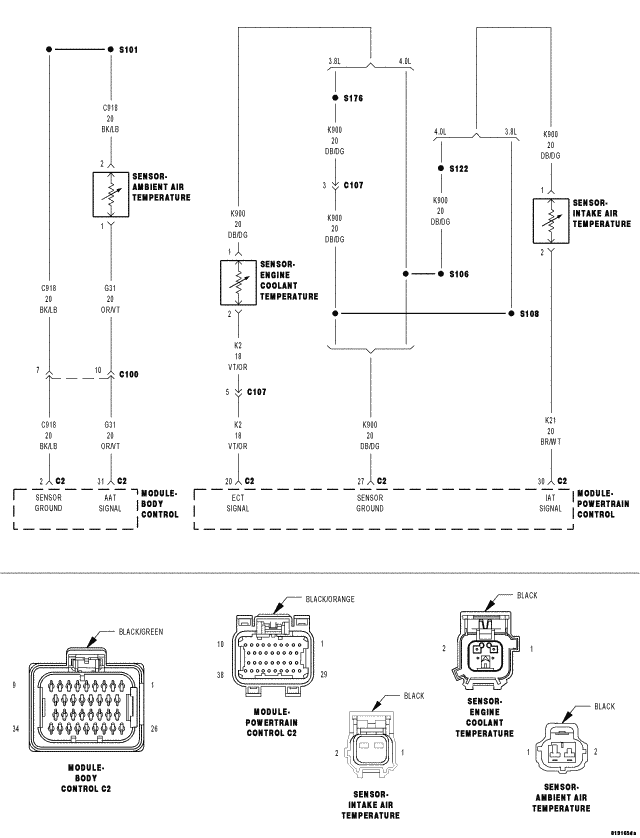

Fig 1: Temperature Sensors Circuit Schematic
GC0049379Courtesy of CHRYSLER LLC
