Fan Radiator Cooling Module 1 Connector End View

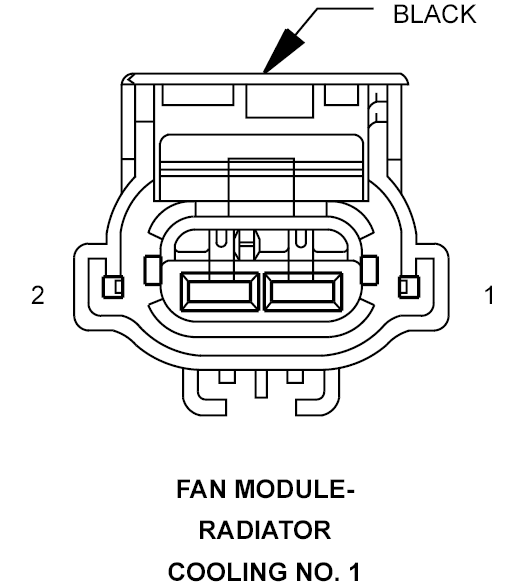

FAN MODULE-RADIATOR COOLING NO. 1 - BLACK 2-WAY

GCS780232Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 N23 12DB/DG RADIATOR FAN RELAY OUTPUT
2 Z823 12BK/DG GROUND
