Fan Radiator Cooling Module 2 Connector End View

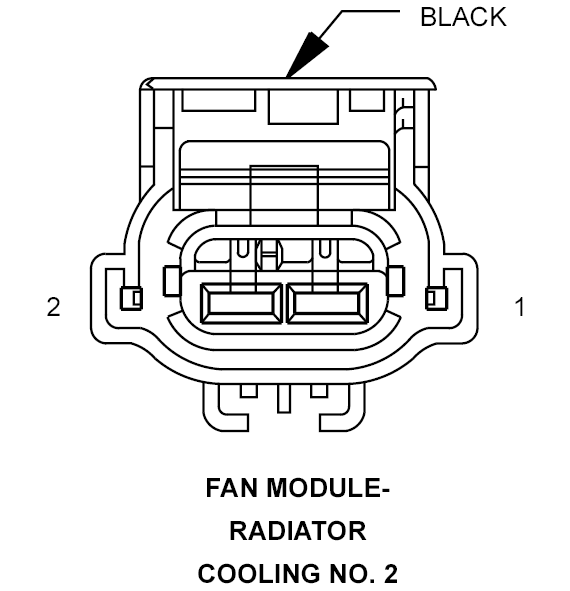

FAN MODULE-RADIATOR COOLING NO. 2 - BLACK 2-WAY

GCS780233Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 N23 12DB/DG RADIATOR FAN RELAY OUTPUT
2 Z223 12BK/DG GROUND
