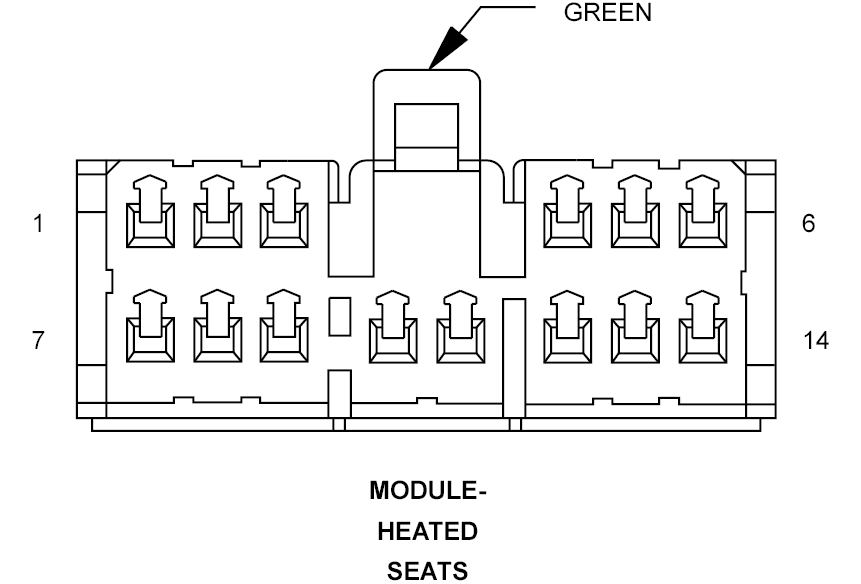

Heated Seats Module Connector End View
MODULE-HEATED SEATS - GREEN 14-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P77 20LG | LEFT MIDDLE ROW SEAT SWITCH MUX |
| 2 | P189 20LG/WT | MIDDLE ROW SEAT TEMPERATURE SENSOR 5 VOLT SUPPLY |
| 3 | P188 16LG/VT | RIGHT MIDDLE ROW SEAT HEATER B(+) DRIVER |
| 4 | F525 16TN/PK | FUSED RUN RELAY OUTPUT |
| 5 | P187 16LG/BR | LEFT MIDDLE ROW SEAT HEATER B(+) DRIVER |
| 6 | F525 16TN/PK | FUSED RUN RELAY OUTPUT |
| 7 | P196 20LG/LB | RIGHT MIDDLE ROW SEAT TEMPERATURE SENSOR INPUT |
| 8 | P197 20LG/DG | LEFT MIDDLE ROW SEAT TEMPERATURE SENSOR INPUT |
| 9 | P96 20LB/LG | RIGHT MIDDLE ROW SEAT SWITCH MUX |
| 10 | P182 20LG/OR | RIGHT MIDDLE ROW SEAT LOW INDICATOR DRIVER |
| 11 | P184 20LG/GY | RIGHT MIDDLE ROW SEAT HIGH INDICATOR DRIVER |
| 12 | P181 20LG/DB | LEFT MIDDLE ROW SEAT LOW INDICATOR DRIVER |
| 13 | Z870 20BK/YL | GROUND |
| 14 | P183 20LG/YL | LEFT MIDDLE ROW SEAT HIGH INDICATOR DRIVER |
