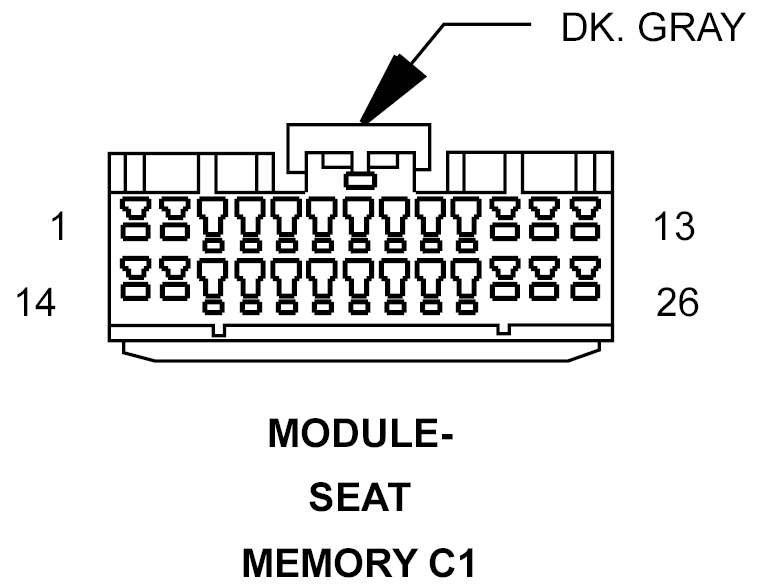

Seat Memory Module Connector End View (C1)
MODULE-SEAT MEMORY C1 - DK. GRAY 26-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P205 14LG/DB | ADJUSTABLE PEDALS MOTOR FORWARD (ADJUSTABLE PEDALS) |
| 2 | P44 14LG/DG | PASSENGER SEAT RECLINER UP DRIVER |
| 3 | - | - |
| 4 | - | - |
| 5 | - | - |
| 6 | - | - |
| 7 | - | - |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |
| 11 | D25 20WT/VT | PCI BUS |
| 12 | P42 14LG/GY | PASSENGER SEAT RECLINER DOWN DRIVER |
| 13 | P206 14LG/TN | ADJUSTABLE PEDALS MOTOR REVERSE (ADJUSTABLE PEDALS) |
| 14 | P14 14LG/OR | PASSENGER SEAT HORIZONTAL FORWARD DRIVER |
| 15 | P95 18LG/WT | PASSENGER SEAT HEATER B(+) DRIVER (FRONT ROW HEATED SEATS) |
| 16 | G11 20VT/TN | ADJUSTABLE PEDALS SENSOR FEED (ADJUSTABLE PEDALS) |
| 17 | - | - |
| 18 | - | - |
| 19 | G12 22VT/BR | ADJUSTABLE PEDALS SENSOR SIGNAL (ADJUSTABLE PEDALS) |
| 20 | G912 20VT/WT | ADJUSTABLE PEDALS SENSOR RETURN (ADJUSTABLE PEDALS) |
| 21 | - | - |
| 22 | - | - |
| 23 | - | - |
