Fuel Pump Module Connector End View

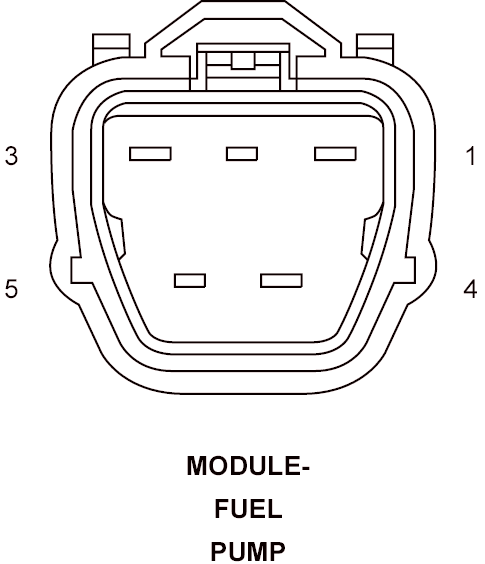

MODULE-FUEL PUMP - 5-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Z916 16BK
GROUND
2
N4 20DB/WT
FUEL LEVEL SIGNAL 1
3
-
-
4
Z916 16BK
GROUND
5
N1 16DB/OR
FUEL PUMP CONTROL OUTPUT
Courtesy of CHRYSLER CORP.
