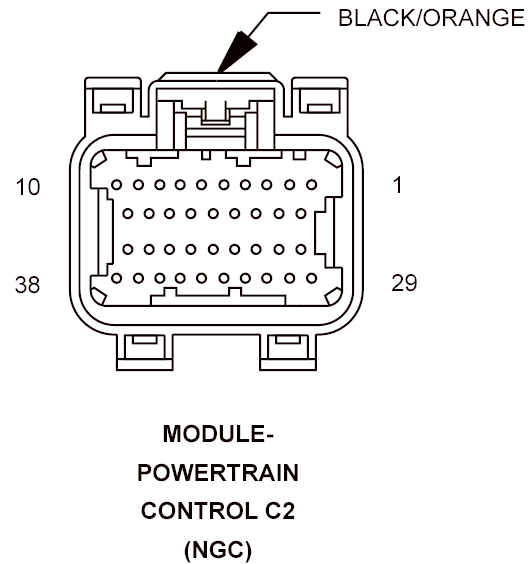

Powertrain Control Module (NGC) Connector End View (C2)

MODULE-POWERTRAIN CONTROL C2 - BLACK/ORANGE 38-WAY (NGC)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K10 18DB/OR	COIL 6 CONTROL
2	K16 18DB/YL	COIL 5 CONTROL
3	K15 18DB/GY	COIL 4 CONTROL
4	K58 20BR/VT	INJECTOR 6 CONTROL
5	K38 20BR/OR	INJECTOR 5 CONTROL
6	K124 18DB/GY	ETC MOTOR (+)
7	K18 18DB/OR	COIL 3 CONTROL
8	K35 20DB/VT	EGR CONTROL
9	K17 18DB/TN	COIL 2 CONTROL
10	K19 18DB/DG	COIL 1 CONTROL
11	K14 20BR/TN	INJECTOR 4 CONTROL
12	K13 20BR/LB	INJECTOR 3 CONTROL
13	K12 20BR/DB	INJECTOR 2 CONTROL
14	K11 20BR/OR	INJECTOR 1 CONTROL
15	K922 18BR/DB	TP SENSOR GROUND
16	K136 20BR/WT	MTV CONTROL
17	K199 16BR/VT	O2 2/1 HEATER CONTROL
18	K99 16BR/LG	O2 1/1 HEATER CONTROL
19	K20 20BR/GY	GEN FIELD CONTROL
20	K2 20VT/OR	ECT 1 SIGNAL (2.7L)
20	K2 20VT/OR	ECT SIGNAL (3.5L)
21	K22 18BR/OR	TP SIGNAL 1
22	K34 20DB/LG	EGR SIGNAL
23	K1 20VT/DG	MAP SIGNAL
24	K942 20WT/BR	KS RETURN
25	K42 20DB/YL	KS SIGNAL
26	-	-
27	K900 20DB/LB	SENSOR GROUND
28	K122 18BR/DG	TP SIGNAL 2
29	F855 20PK/YL	5 VOLT SUPPLY
30	K21 20DB/LG	IAT SIGNAL
31	K41 20BK/DG	O2 1/1 SIGNAL
32	K902 20BR/TN	O2 RETURN (UP)
33	K43 20DB/LG	O2 2/1 SIGNAL
34	K44 20DB/GY	CMP SIGNAL
35	K24 20BR/LB	CKP SIGNAL
36	-	-
37	-	-
38	K126 18DB/LG	ETC MOTOR (-)
