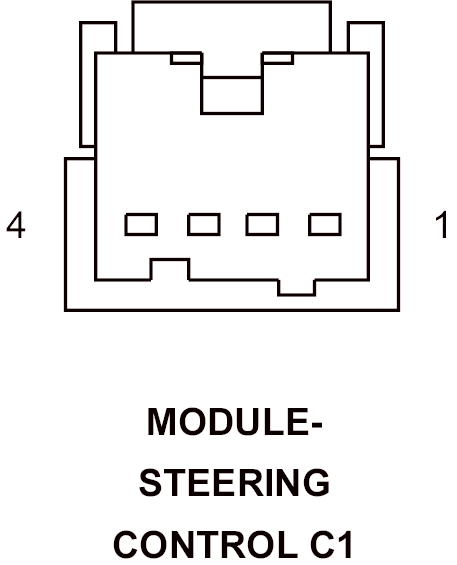

Steering Control Module Connector End View (C1)
MODULE-STEERING CONTROL C1 - 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z910 20BK |
GROUND |
| 2 |
A411 20RD |
FUSED B(+) (I.O.D.) |
| 3 |
D506 20WT/DG |
LIN BUS |
| 4 |
F202 20PK/WT |
IGNITION SWITCH OUTPUT (RUN-START) |
