Speed Control Switch

Fig 1: Speed Control Switch

Courtesy of CHRYSLER LLC

The speed control switches is mounted in the steering wheel and wired through the clock spring device under the airbag module.

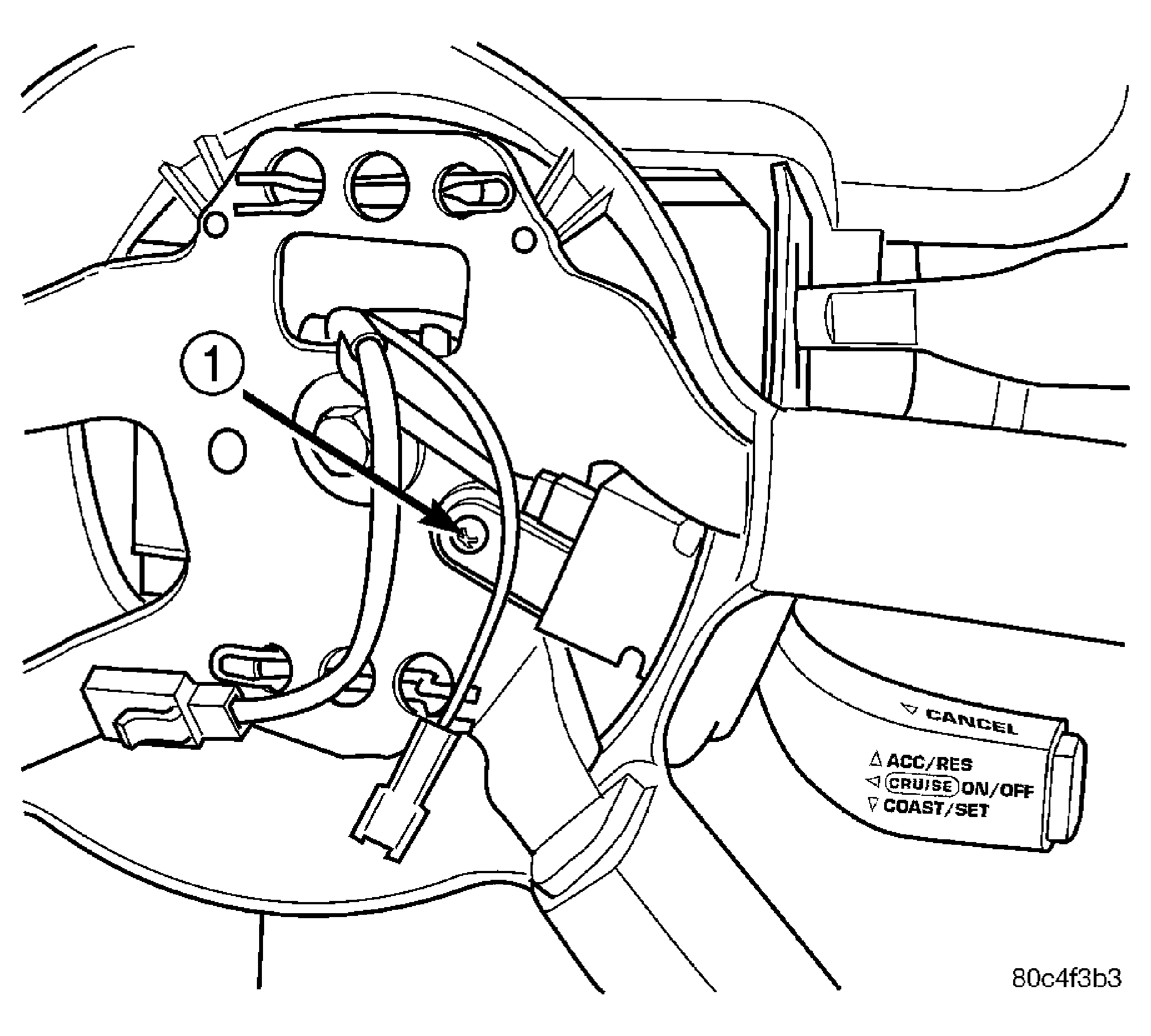

Fig 2: Switch Top Mounting Screw

Courtesy of CHRYSLER LLC

1. Remove the negative battery cable.
2. Turn off ignition.
3. Remove air bag, refer to the RESTRAINTS - SERVICE INFORMATION article .
4. Remove the top mounting screw.
5. Rotate steering wheel so that the switch is in the 6 o'clock position. Remove 2 screws from the back side of the speed control switch.
   Fig 3: Removing/Installing Switch

   Courtesy of CHRYSLER LLC
6. Disconnect the electrical connector.
7. Remove switch.
