Powertrain Control Module (NGC) Connector End View (C4)

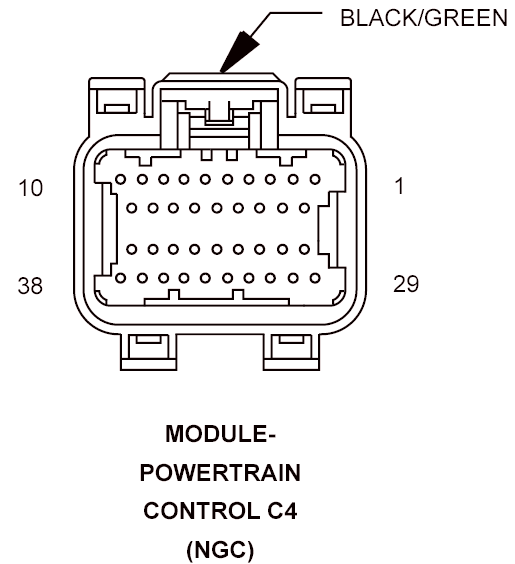

MODULE-POWERTRAIN CONTROL C4 - BLACK/GREEN 38-WAY (NGC)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	T60 16YL/GY	OD CONTROL
2	T59 16YL/LB	UD CONTROL
3	T84 16DG/TN	EMCC VFS CONTROL (62TE)
4	T82 16DG/OR	DC CONTROL (62TE)
5	T83 18DG/GY	DC PRESSURE SIGNAL (62TE)
6	T19 18YL/DB	2-4 CONTROL (40/41TE)
6	T19 18YL/DB	2/4-L/R CONTROL (62TE)
7	-	-
8	T80 16DG/YL	LC CONTROL (62TE)
9	-	-
10	T20 16DG/WT	L/R CONTROL
11	T118 16DG	LP VFS CONTROL
12	Z902 16BK	GROUND
13	Z902 16BK	GROUND
14	Z902 16BK	GROUND
15	T1 18DG/LB	TRS T1 SIGNAL
16	T3 18DG/DB	TRS T3 SIGNAL
17	-	-
18	T15 18YL/BR	TRANSMISSION CONTROL
19	T16 16YL/OR	TRANSMISSION CONTROL OUTPUT
20	-	-
21	T81 18DG/LB	LC PRESSURE SIGNAL (62TE)
22	T9 18DG/TN	OD PRESSURE SIGNAL (62TE)
23	-	-
24	T85 20DG/LG	TRANSFER SPEED SIGNAL (62TE)
25	-	-
26	-	-
27	T41 18YL/DB	TRS T41 SIGNAL
28	T16 16YL/OR	TRANSMISSION CONTROL OUTPUT
29	T50 18YL/TN	L/R PRESSURE SIGNAL
30	T47 18YL/DG	2-4 PRESSURE SIGNAL
31	T38 18YL/BR	LP VFS SIGNAL
32	T14 20DG/BR	OUTPUT SPEED SIGNAL
33	T52 20DG/OR	INPUT SPEED SIGNAL
34	T13 20DG/VT	SENSOR GROUND
35	T54 18DG/OR	TRANSMISSION TEMPERATURE SIGNAL
36	-	-
37	T42 18DG/YL	TRS T42 SIGNAL
38	T16 16YL/OR	TRANSMISSION CONTROL OUTPUT
