Sensor-Fuel Level - Diesel

Fig 1: Groove in Back Side of Level Sensor

Courtesy of CHRYSLER LLC

1 - WIRING GROOVE

Wrap wires into groove in back of level sensor.
While feeding wires into guide grooves (1).

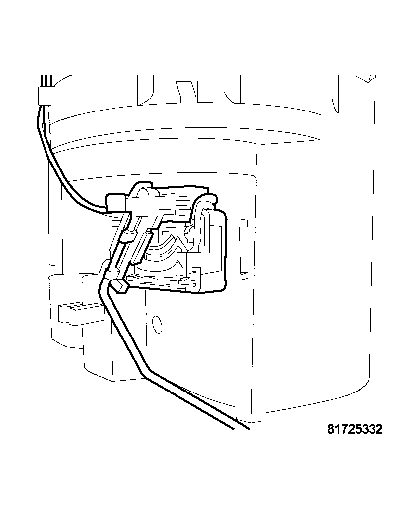

Fig 2: Level Sensor
Courtesy of CHRYSLER LLC

1 - FUEL LEVER SENSOR
Slide level sensor up into channel until it snaps into place. Ensure tab at bottom of sensor locks in place.
Install wire into wire retainer.

Fig 3: Removing/Installing Wedge Lock
Courtesy of CHRYSLER LLC
Install level sensor wires in connector. Push the wires up through the connector and then pull them down until they lock in place. Ensure signal and ground wires are installed in the correct position refer to SYSTEM WIRING DIAGRAMS article.
Install locking wedge on connector.

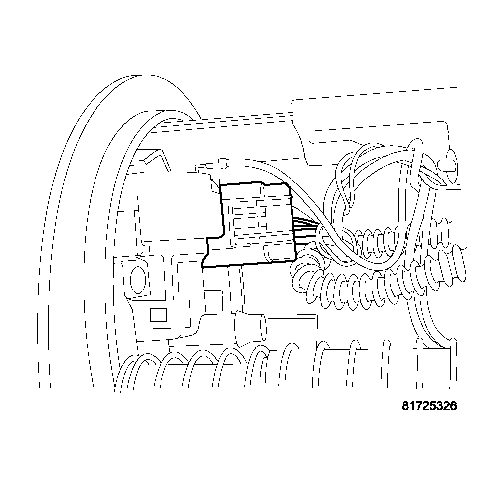

Fig 4: Fuel Pump/Level Sensor Electrical Connector
Courtesy of CHRYSLER LLC

1 - ELECTRICAL CONNECTOR
Push connector up into bottom of fuel pump module electrical connector (1).
Install fuel pump module, see INSTALLATION .
