EVAP System Monitor Switch (Except Export) Connector End View

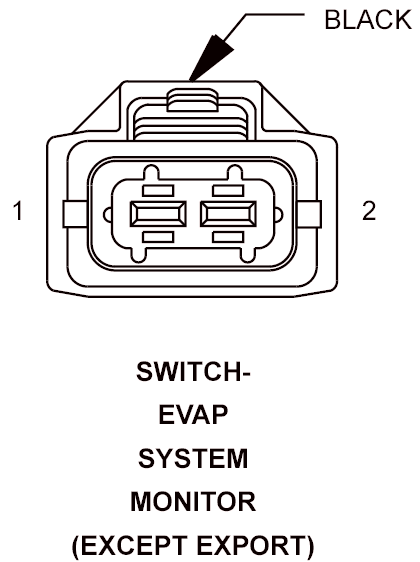

SWITCH-EVAP SYSTEM MONITOR - BLACK 2-WAY (EXCEPT EXPORT)

GJS780347Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z916 20BK GROUND
2 K107 20VT/WT ESM SIGNAL
