Fan Radiator Cooling Module Connector End View (C2)

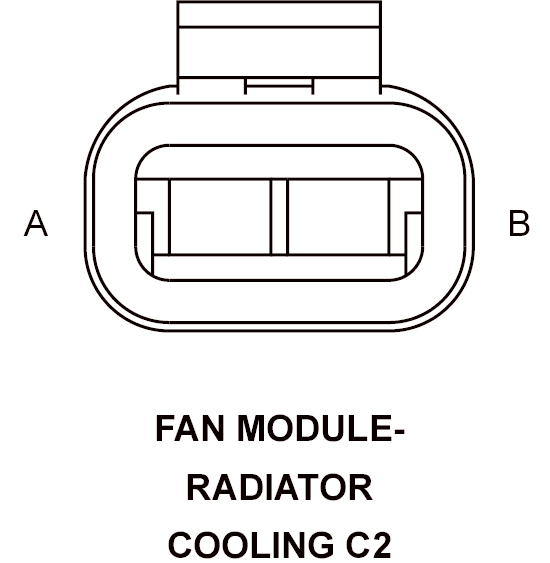

FAN MODULE-RADIATOR COOLING C2 - 2-WAY

GJS780121Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
A N24 10DG RAD FAN RELAY OUTPUT
B Z920 10BK GROUND
