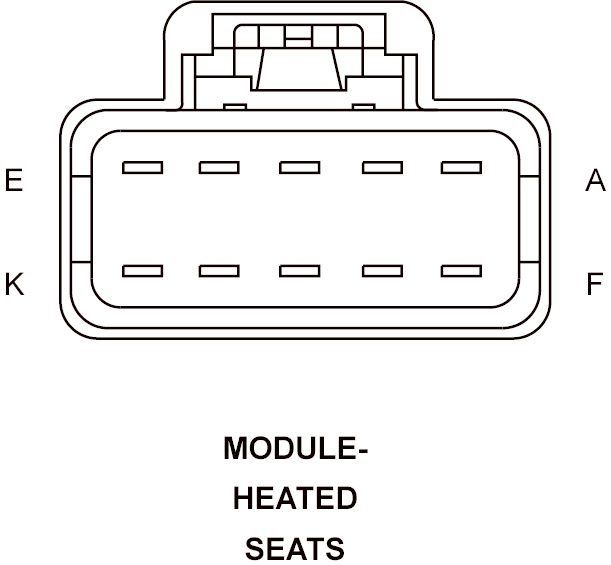

Heated Seats Module Connector End View
MODULE-HEATED SEATS - 10-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| A |
- |
- |
| B |
- |
- |
| C |
- |
- |
| D |
P187 18LG/BR |
LEFT SEAT HEATER B(+) DRIVER |
| E |
F937 18PK/YL |
FUSED IGNITION SWITCH OUTPUT (RUN) |
| F |
Z914 16BK |
GROUND |
| G |
- |
- |
| H |
- |
- |
| J |
D506 22WT/DG |
LIN BUS |
| K |
P188 18LG/VT |
RIGHT SEAT HEATER B(+) DRIVER |
