Left Front Wheel Speed Sensor Connector End View

SENSOR-WHEEL SPEED-ABS-LEFT FRONT - 2-WAY

GJS780319Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 B9 20RD LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
2 B8 20RD/DB LEFT FRONT WHEEL SPEED SENSOR SIGNAL

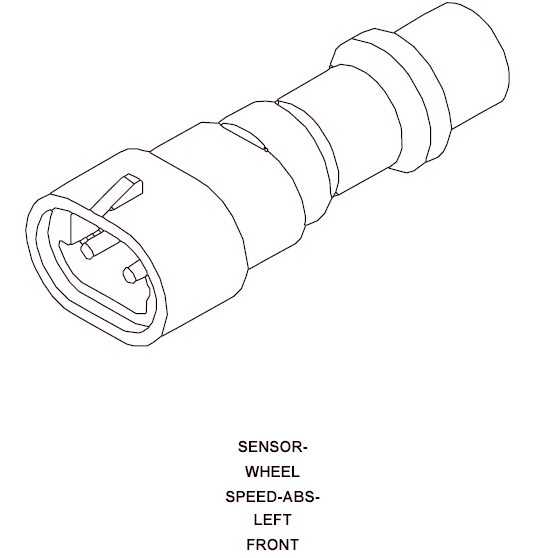

SENSOR-WHEEL SPEED-ABS-LEFT FRONT - 2-WAY

GJS781001Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 RD LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
2 RD/DB LEFT FRONT WHEEL SPEED SENSOR SIGNAL
