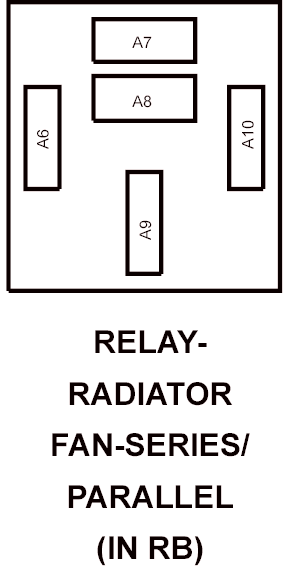

Radiator Fan Series/Parallel Relay Connector End View
RELAY-RADIATOR FAN-SERIES/PARALLEL
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| A6 |
A935 20RD |
FUSED B(+) |
| A6 |
A935 20RD |
FUSED B(+) |
| A7 |
Z901 10BK |
GROUND |
| A8 |
N24 10DG |
RAD FAN RELAY OUTPUT |
| A9 |
N210 10DB/DG |
SERIES/PARALLEL RAD FAN RELAY FEED |
| A10 |
N112 20DB/OR |
RAD FAN RELAY CONTROL |
| A10 |
N112 20DB/OR |
RAD FAN RELAY CONTROL |
