Speed Control Switch Connector End View

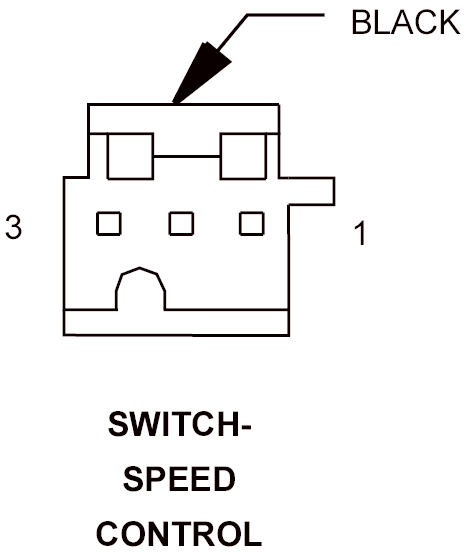

SWITCH-SPEED CONTROL - BLACK 3-WAY

GJS780367Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 V72 20PK S/C SIGNAL 2
2 V937 20YL S/C SWITCH GROUND
3 V71 20VT S/C SIGNAL 1
