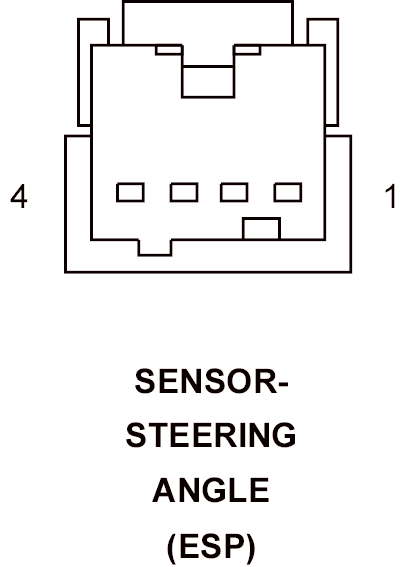

Steering Angle Sensor (Electronic Stability Program) Connector End View
SENSOR-STEERING ANGLE - 4-WAY (ESP)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
D65 20WT/LG |
CAN C BUS (+) |
| 2 |
D64 20WT/LB |
CAN C BUS (-) |
| 3 |
Z910 20BK |
GROUND |
| 4 |
F202 20PK/WT |
IGNITION SWITCH OUTPUT (RUN-START) |
