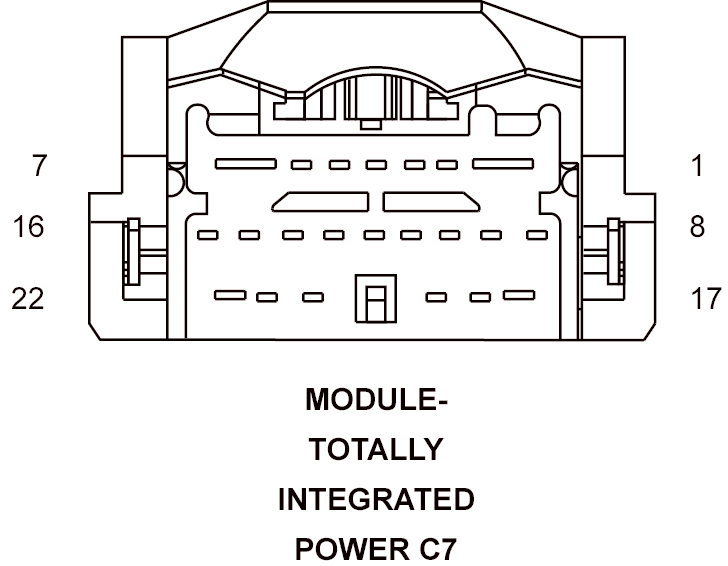

Totally Integrated Power Module Connector End View (C7)
MODULE-TOTALLY INTEGRATED POWER C7 - 22-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | - | - |
| 3 | A924 22RD | FUSED B(+) |
| 4 | A952 20RD/TN | FUSED B(+) |
| 5 | F200 22PK/LB | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 6 | - | - |
| 7 | F100 20PK/VT | FUSED IGNITION SWITCH OUTPUT (RUN) |
| 8 | A929 12RD | FUSED B(+) |
| 9 | A933 22RD/VT | FUSED B(+) |
| 10 | - | - |
| 11 | N1 16DB/OR | FUEL PUMP CONTROL OUTPUT |
| 12 | - | - |
| 13 | A417 20RD/DB | FUSED B(+) (I.O.D.) |
| 14 | A950 20RD/VT | FUSED B(+) |
| 15 | A418 20RD/LG | FUSED B(+) (I.O.D.) |
| 16 | A412 20RD/GY | FUSED B(+) (I.O.D.) |
| 17 | A16 10RD/BR | FUSED B(+) |
| 18 | A932 18RD/WT | DOOR LOCK POWER-FUSED B(+) |
| 19 | F996 20PK/DG | FUSED IGNITION SWITCH OUTPUT (RUN-ACC) |
| 20 | - | - |
| 21 | F981 14PK | IGNITION SWITCH OUTPUT (RUN-ACC) |
| 22 | - | - |
