Sebring Base, 2.7 R, Gas
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System
>>
Ignition Control - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B2104-Ignition Run/Start Control Circuit Low
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

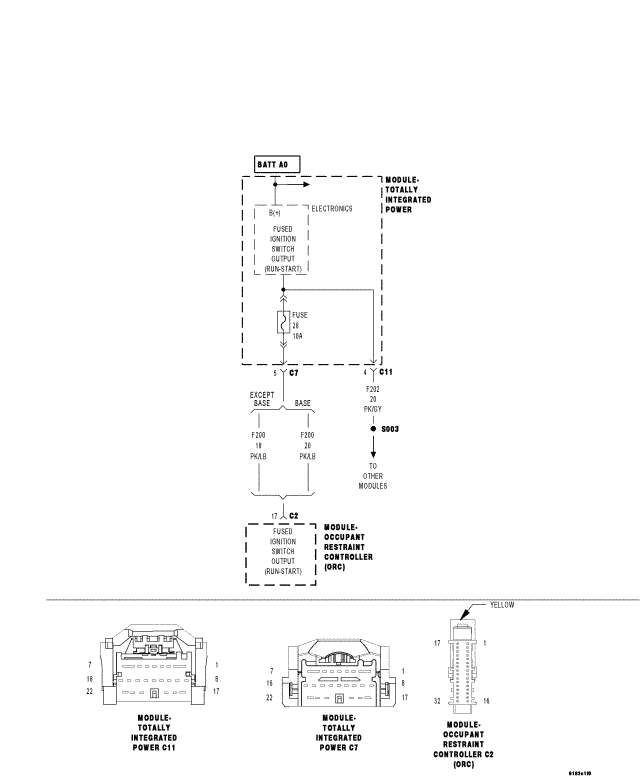

Fig 1: Ignition Run/Start Control Circuit Schematic
