Installation






INSTALLATION

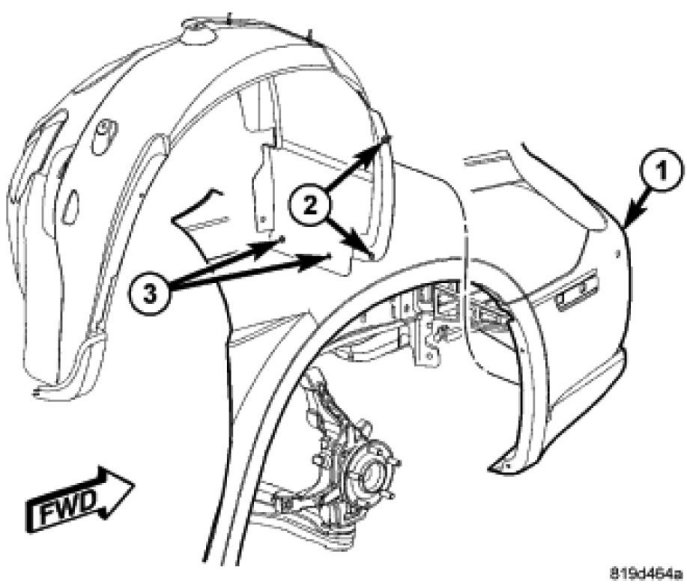

NOTE: JS-41 shown, JS-27 similar.





1. Place splash shield up to wheelhouse opening.

2. Install push pins (3).

3. Install fasteners (2).
