Cargo Lamp

Component ID: 142
Component : LAMP-CARGO

Connector:
Name : LAMP-CARGO
Color : BLACK
# of pins : 2




Pin Description Circuit
1 DECKLID AJAR SWITCH SENSE G78 20VT/OR
2 COURTESY LAMPS DRIVER M25 20OR/LG

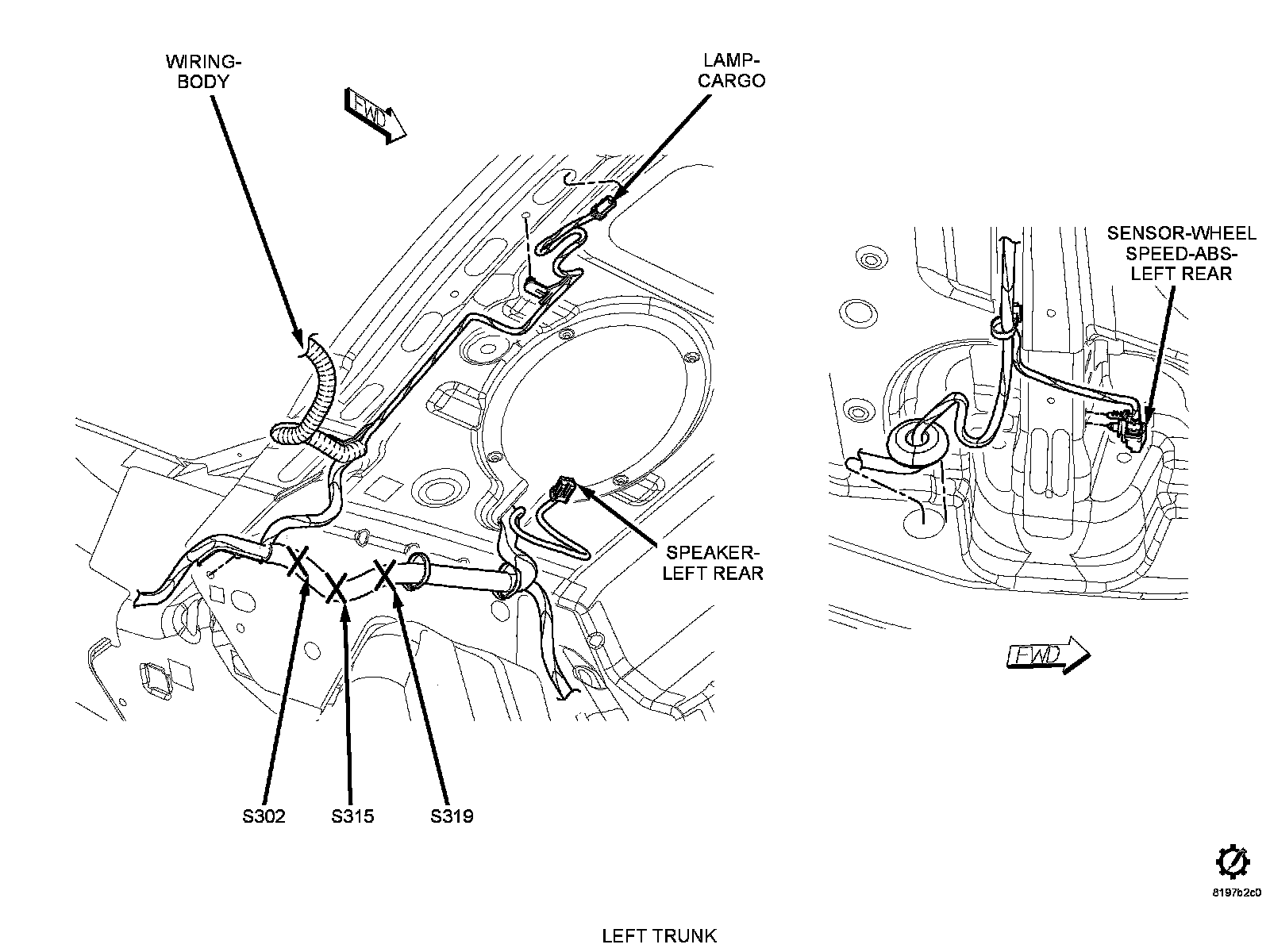

Component Location - 66
