Hood Sensor/Switch (For Alarm)

Component ID: 401
Component : SWITCH-HOOD AJAR

Connector:
Name : SWITCH-HOOD AJAR
Color : BLACK
# of pins : 2




Pin Description Circuit
1 HOOD AJAR SWITCH SENSE G70 20VT/LB
2 GROUND Z920 20BK

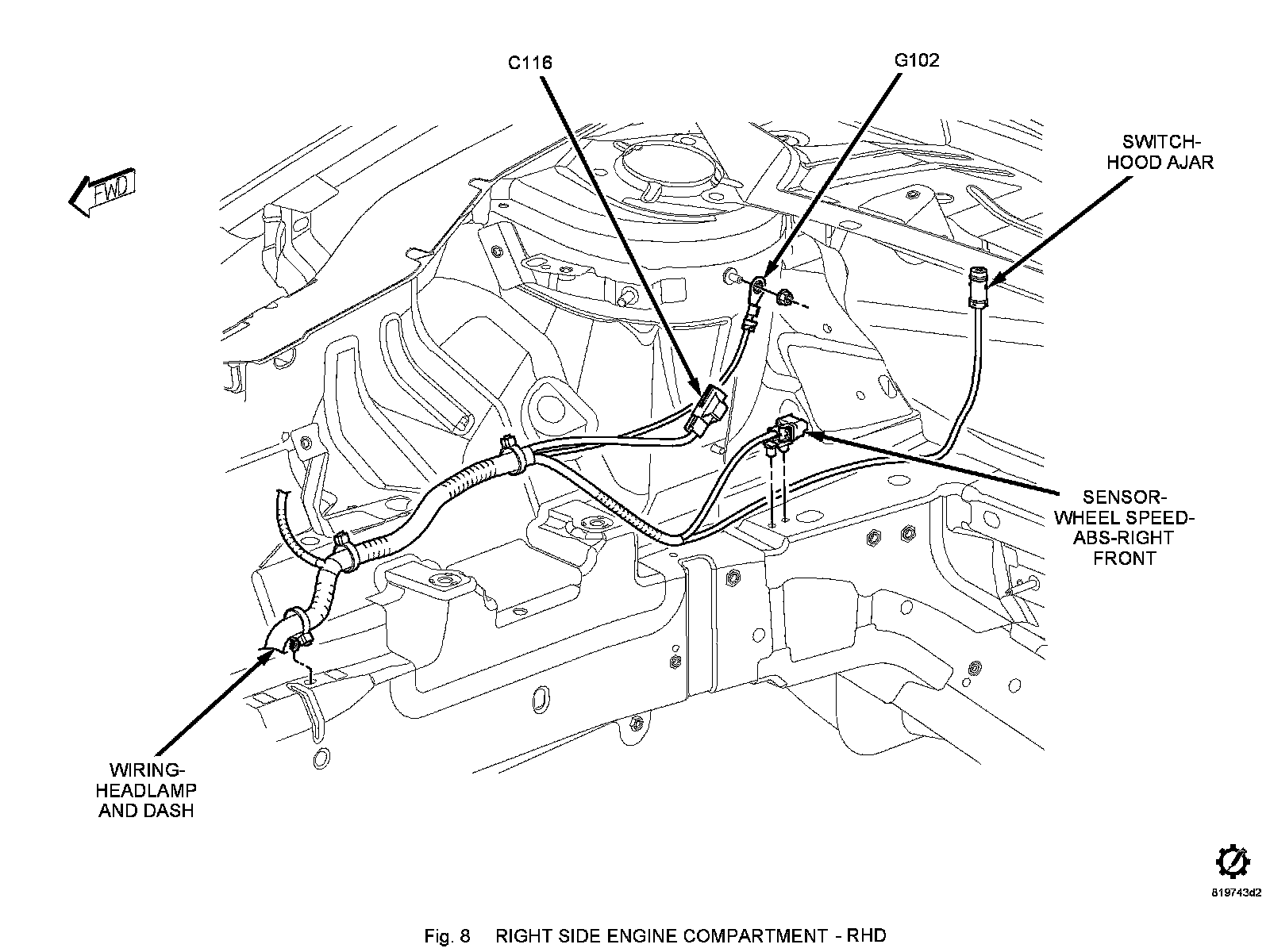

Component Location - 5

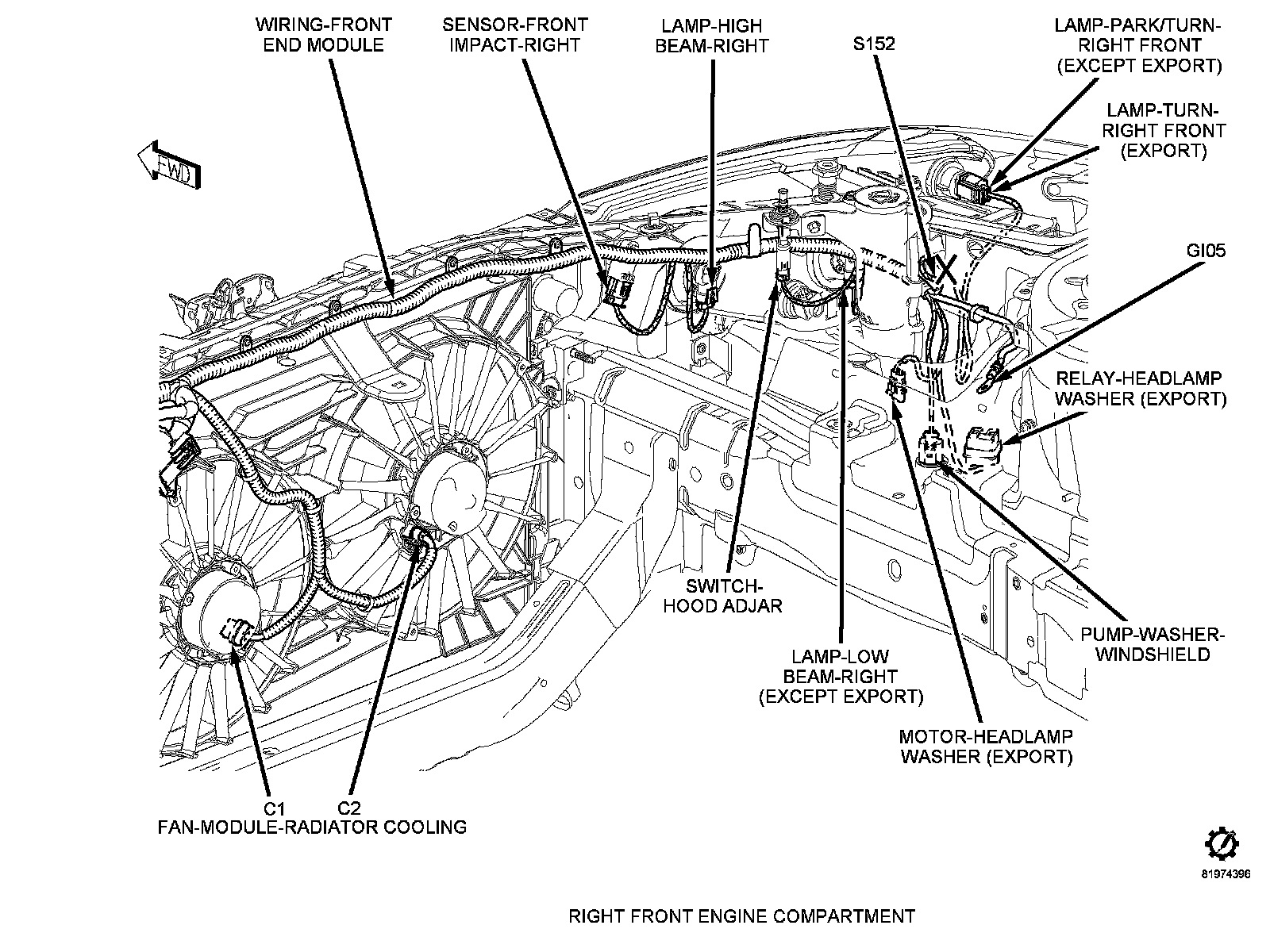

Component Location - 8

Fig. 8:
