Sensor-Side Impact-Left 1

Component ID: 368
Component : SENSOR-SIDE IMPACT-LEFT 1

Connector:
Name : SENSOR-SIDE IMPACT-LEFT 1
Color : GRAY
# of pins : 4




Pin Description Circuit
1 LEFT SIDE IMPACT SENSOR 1 SIGNAL R13 20LG/TN
2 LEFT SIDE IMPACT SENSOR 1 GROUND R15 20LG/BR
3 LEFT SIDE IMPACT SENSOR 2 GROUND R19 20LG/WT
4 LEFT SIDE IMPACT SENSOR 2 SIGNAL R17 20LG

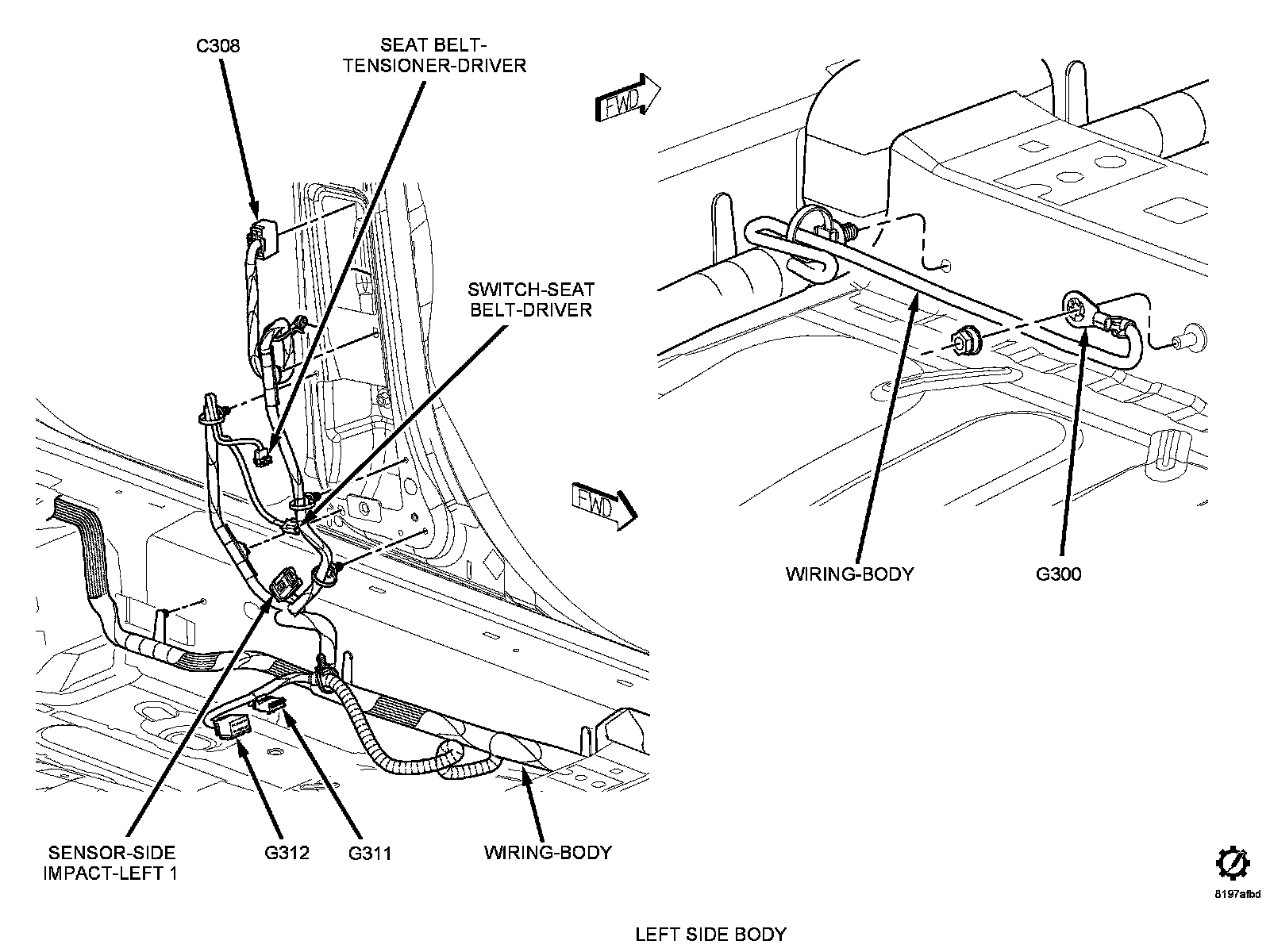

Component Location - 57
