Sensor-Side Impact-Right 1

Component ID: 370
Component : SENSOR-SIDE IMPACT-RIGHT 1

Connector:
Name : SENSOR-SIDE IMPACT-RIGHT 1
Color : GRAY
# of pins : 4




Pin Description Circuit
1 RIGHT SIDE IMPACT SENSOR 1 SIGNAL R14 20TN/LG
2 RIGHT SIDE IMPACT SENSOR 1 GROUND R16 20BR/LG
3 RIGHT SIDE IMPACT SENSOR 2 GROUND R20 20WT/LG
4 RIGHT SIDE IMPACT SENSOR 2 SIGNAL R18 20LB

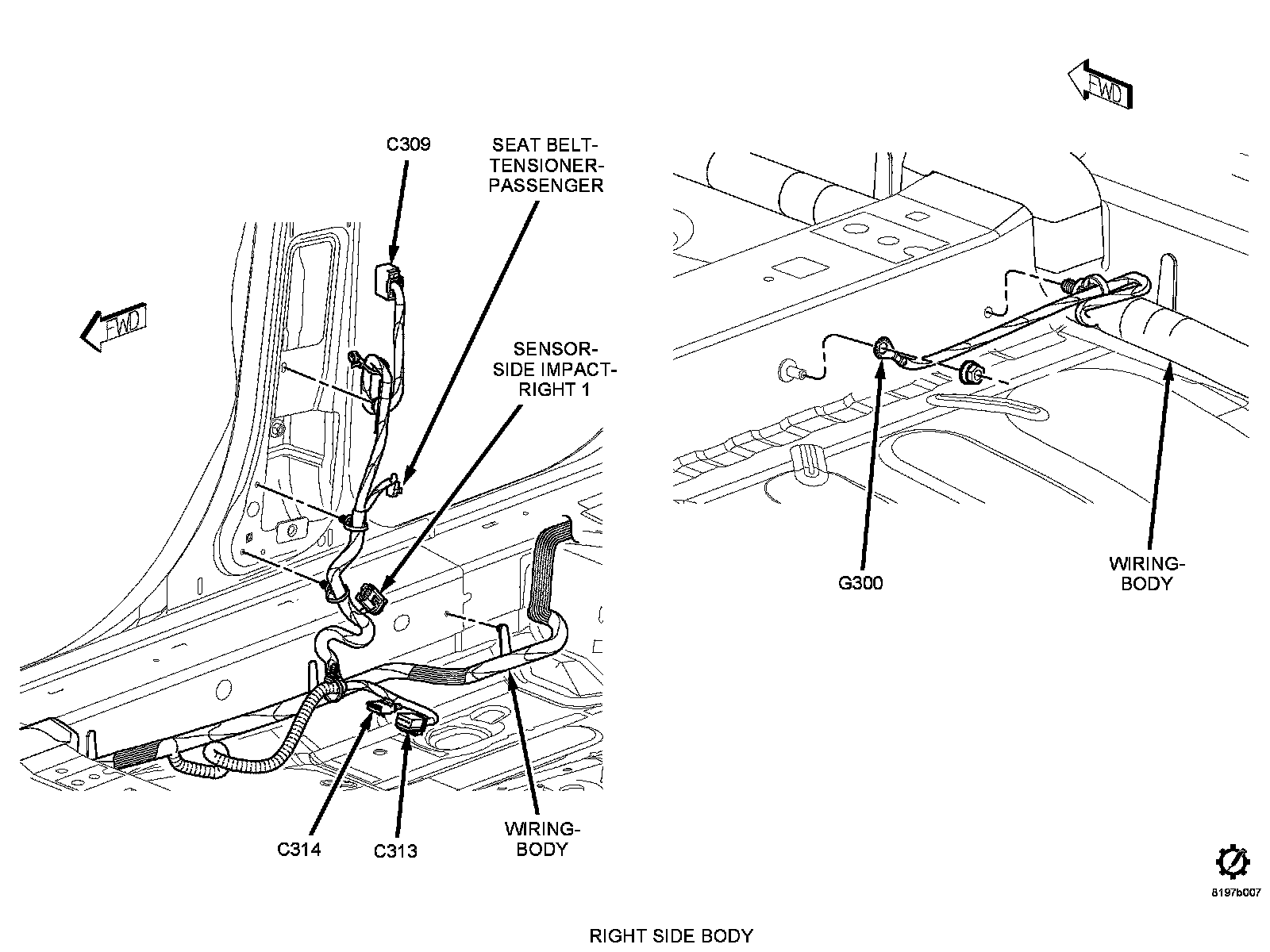

Component Location - 58
