Sensor-Seat Track Position-Driver

Component ID: 366

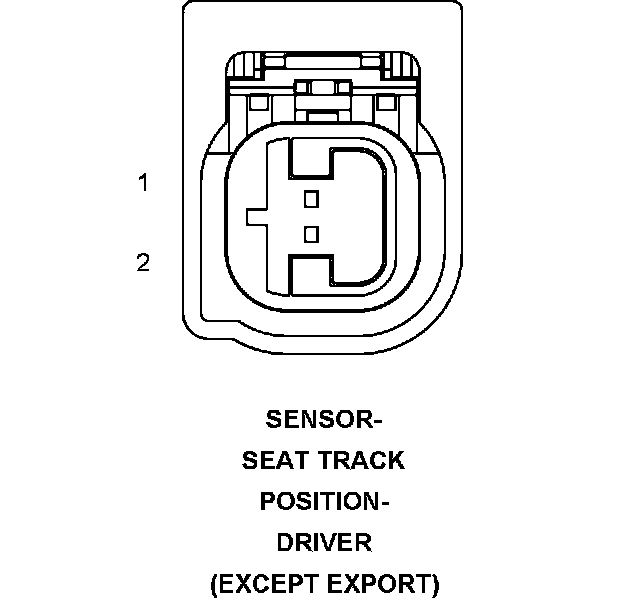

Component : SENSOR-SEAT TRACK POSITION-DRIVER

Connector:
Name : SENSOR-SEAT TRACK POSITION-DRIVER
Color :
# of pins : 2
Qualifier : (EXCEPT EXPORT)




Pin Description Circuit
1 DRIVER SEAT POSITION SENSOR DATA R261 20LB/WT
2 DRIVER SEAT POSITION SENSOR VOLTAGE R263 20LB/VT
