Crankshaft Position Sensor: Diagrams

Component ID: 344
Component : SENSOR-CRANKSHAFT POSITION

Connector:
Name : SENSOR-CRANKSHAFT POSITION
Color : BLACK
# of pins : 3
Qualifier : (DIESEL)




Pin Description Circuit
1 CKP 5 VOLT SUPPLY K853 20DB/BR
2 CKP SIGNAL K24 20BR/LB
3 CKP GROUND K925 20DB/WT

Component Location - 20

Fig. 20:

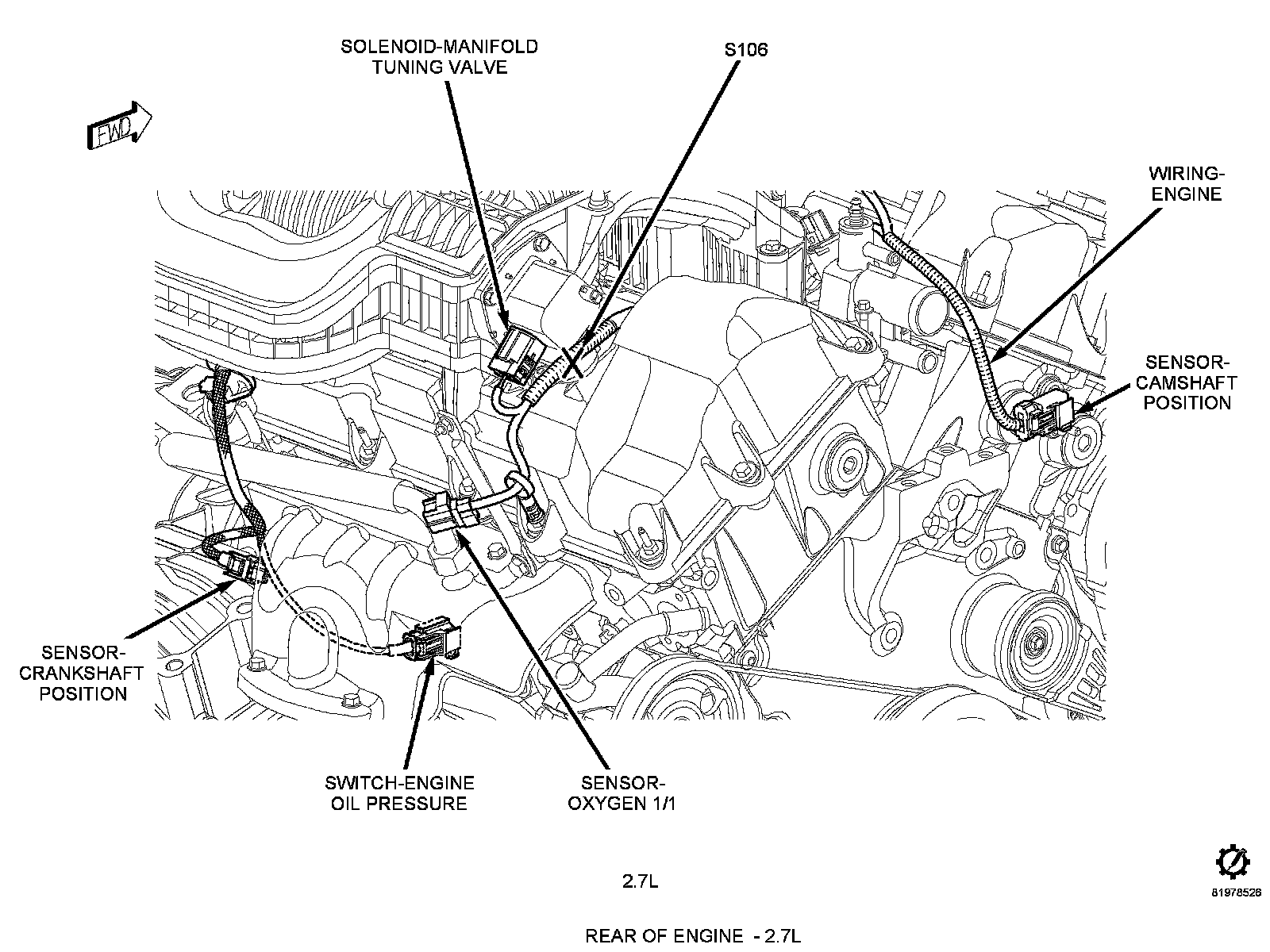

Component Location - 23

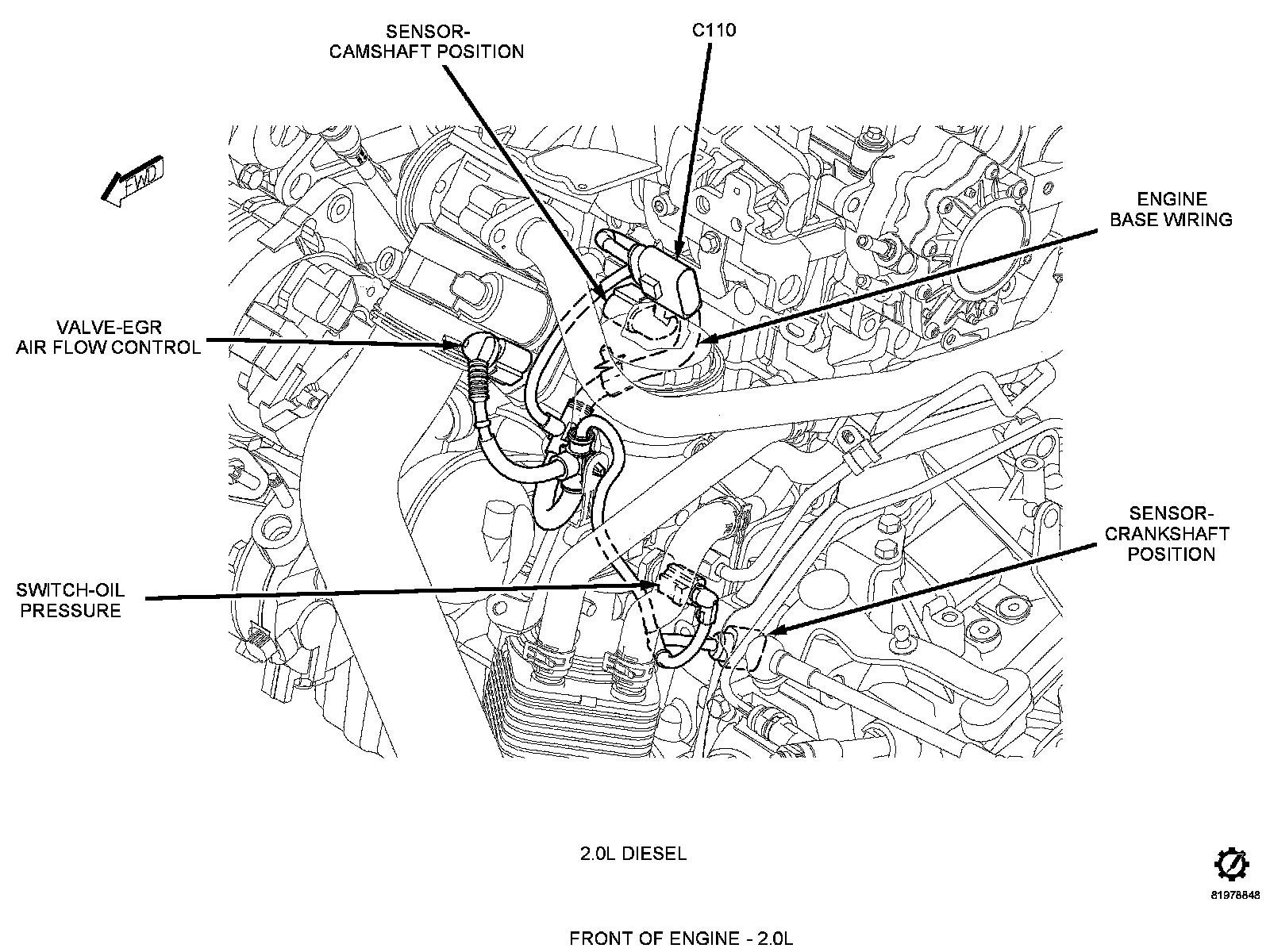

Component Location - 30

Fig. 30:

Component Location - 33






Connector:
Name : SENSOR-CRANKSHAFT POSITION
Color : BLACK
# of pins : 3
Qualifier : (GAS)




Pin Description Circuit
1 5 VOLT SUPPLY F855 20PK/YL
2 SENSOR GROUND K900 20DB/LB
3 CKP SIGNAL K24 20BR/LB

Component Location - 20

Fig. 20:

Component Location - 23




Component Location - 30

Fig. 30:

Component Location - 33
