Installation

INSTALLATION





1. Install shift interlock cable to ignition switch.





2. Push ignition switch up into connect electrical connectors.

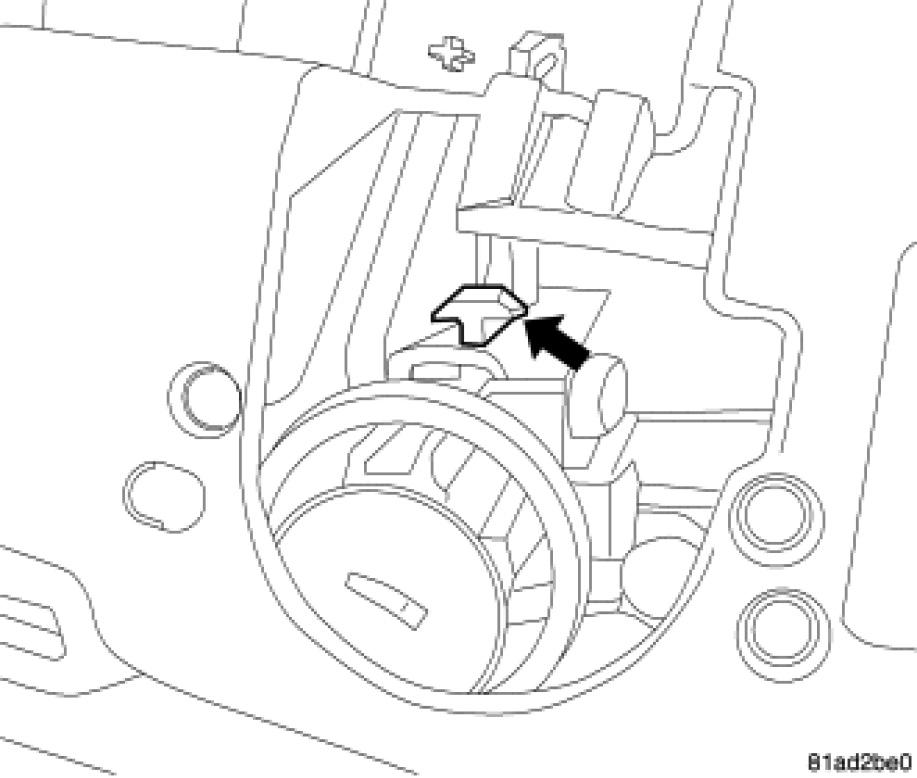

3. Install location to on ignition switch into slot on instrument panel.

4. Pull ignition switch into place.





5. Make sure that location pins are in place.

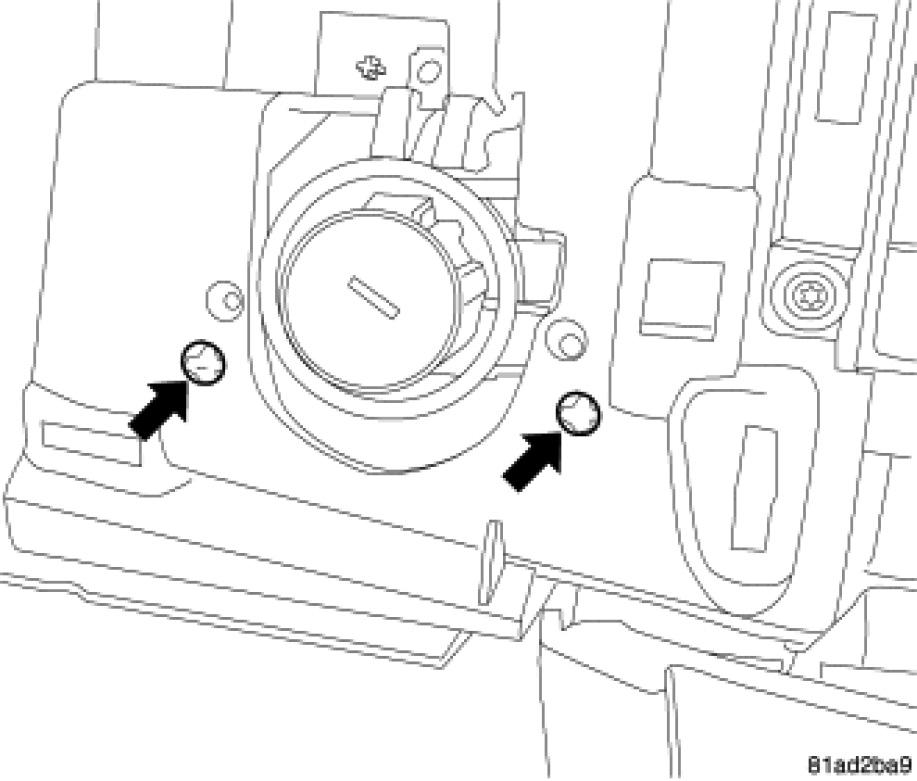

6. Install two front mounting screws and tighten.





7. Rear mounting screw and washer.

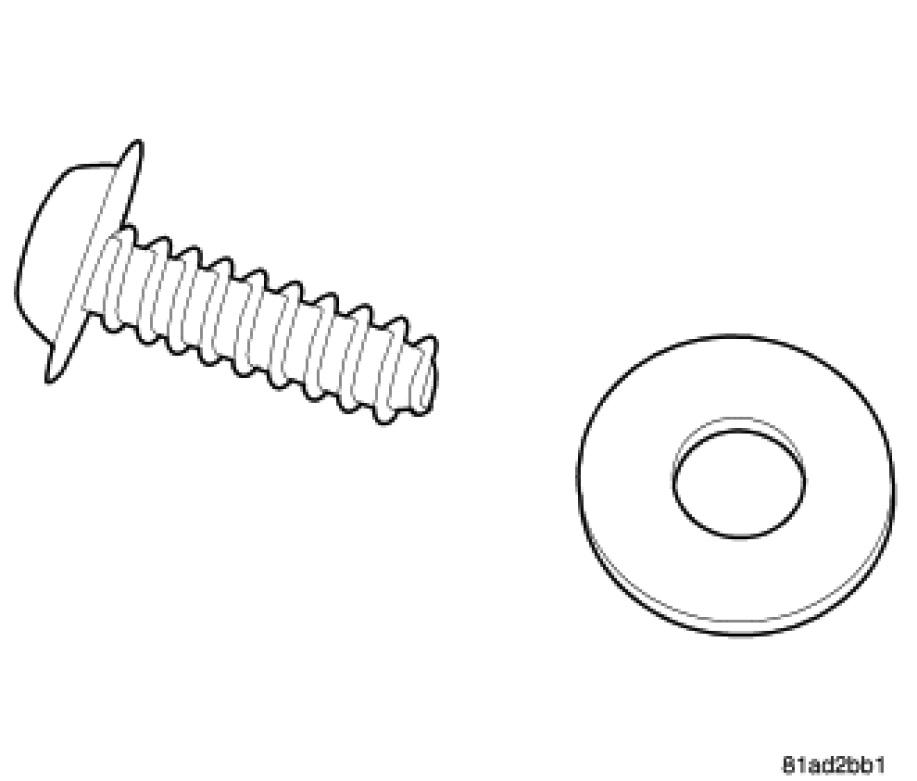

8. Install rear mounting screw and washer and tighten.





9. Connect two electrical connectors to the back of the instrument cluster





10. Relocate instrument cluster and install.





11. Install instrument cluster bezel.





12. Install radio bezel.





13. Connect negative battery cable.

14. Adjust shift interlock if necessary.
