Removal

REMOVAL




1. Before proceeding with the following repair procedure, review all warnings and cautions.

2. Remove the rear view mirror. Refer to Mirrors.

3. Remove the cowl grille.


CAUTION: Be careful not to damage painted surfaces when removing moldings or cutting urethane around the windshield.

4. Remove molding from the top of the windshield.

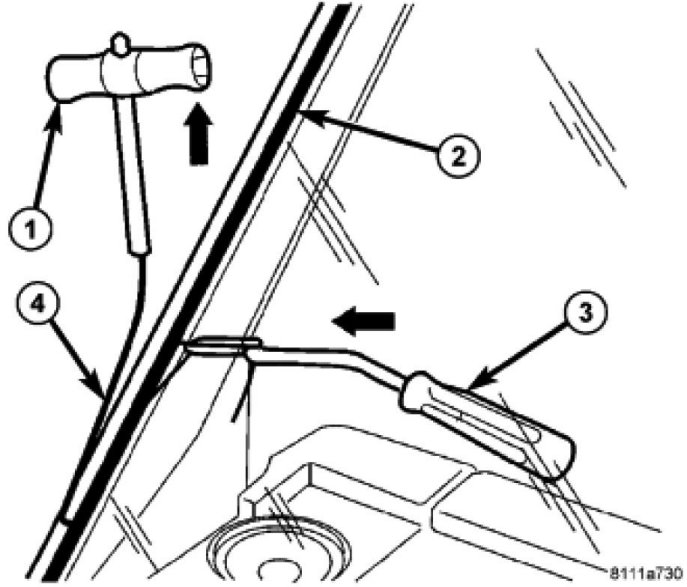

5. Using an assistant and a wire-type windshield cut-out tool (1, 3 and 4), cut and separate the urethane adhesive (2) securing the windshield to the windshield fence.

6. Carefully remove the windshield from the vehicle.
