Installation

3.5L

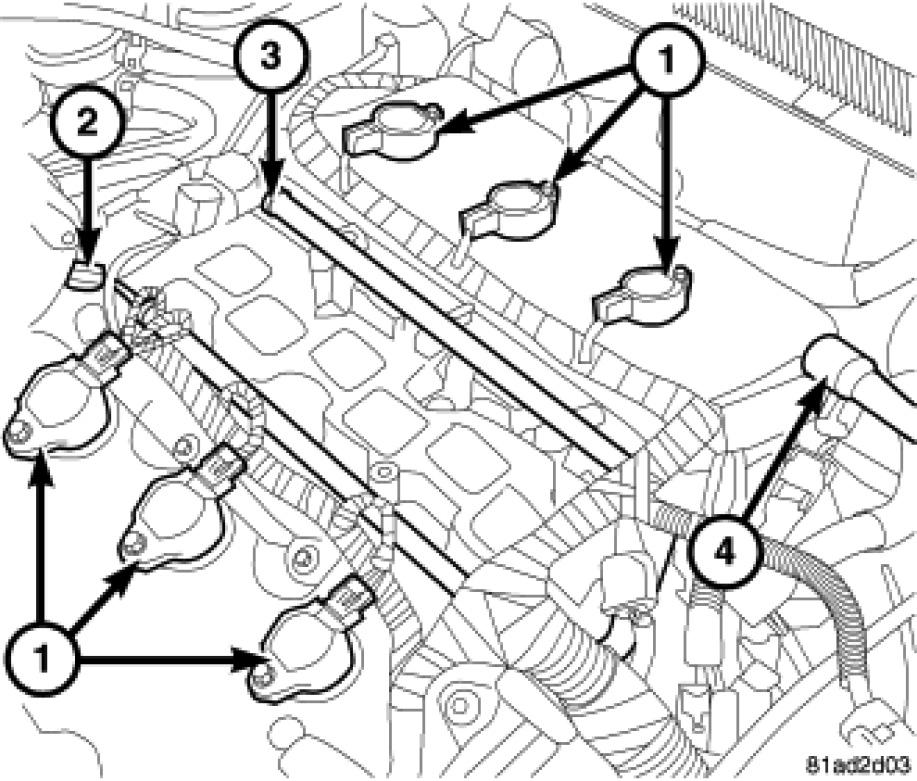

1. Install ignition coil (1).

2. Tighten bolt to 8 Nm (71 in. lbs.).





3. Install engine cover studs (1) in the two outside ignition coils on the front of the engine.

4. Tighten bolt to 8 Nm (71 in. lbs.).

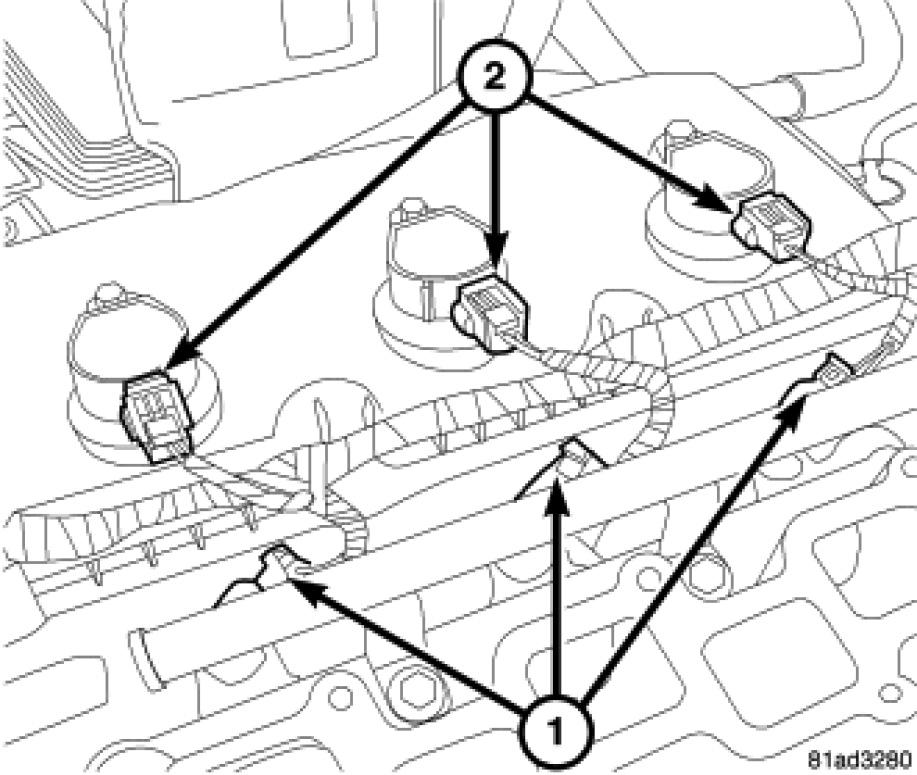

5. Connect electrical connector and lock (2).

6. Install intake manifold.

7. Connect negative battery cable.

8. Install engine cover.
