Service Specifications
3.5L ENGINE

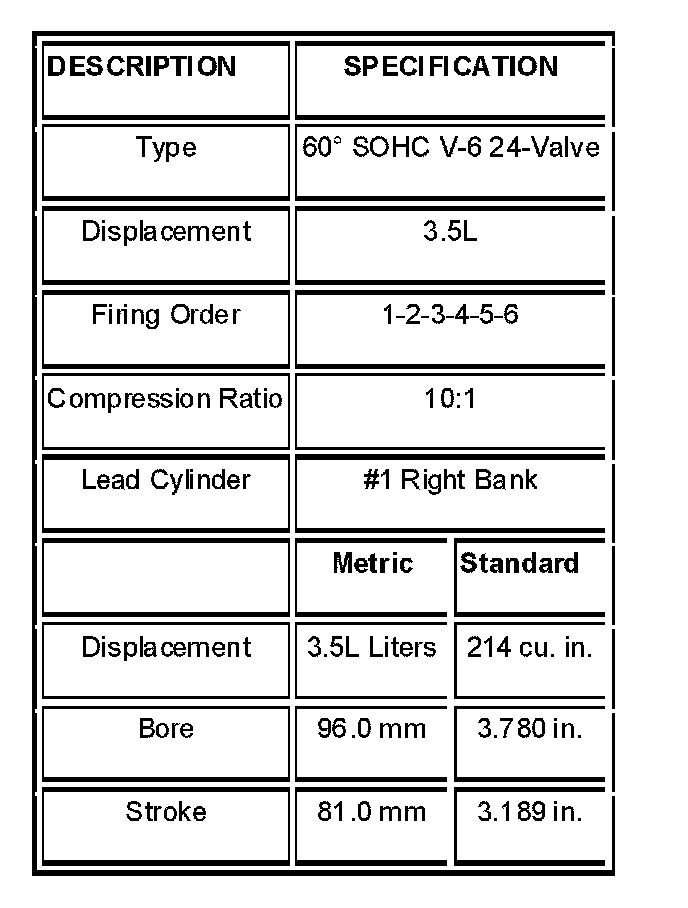

Description:
Description

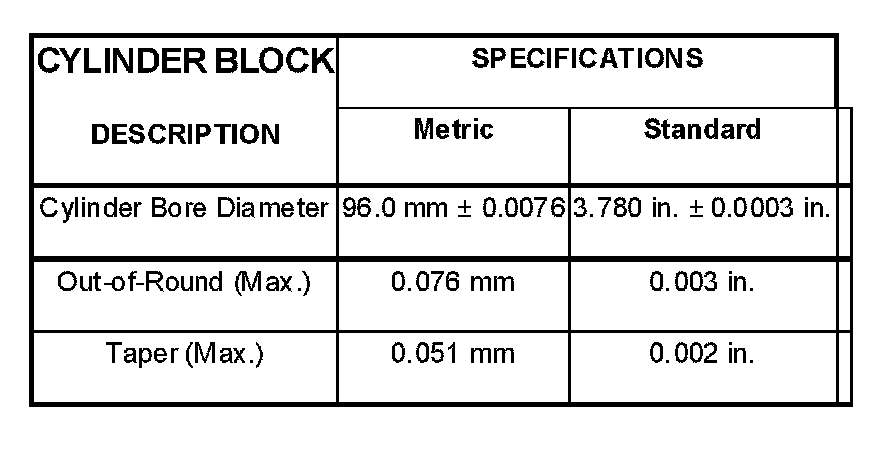

Cylinder Block:
Cylinder Block

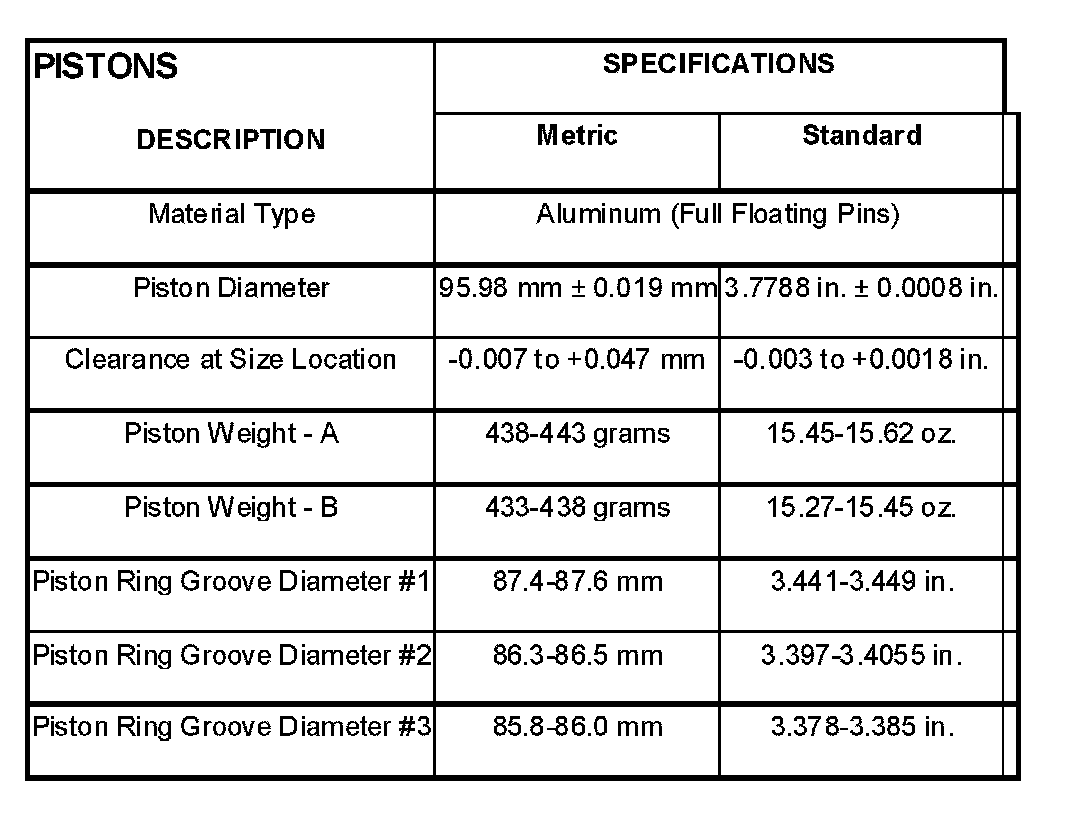

Pistons:
Pistons

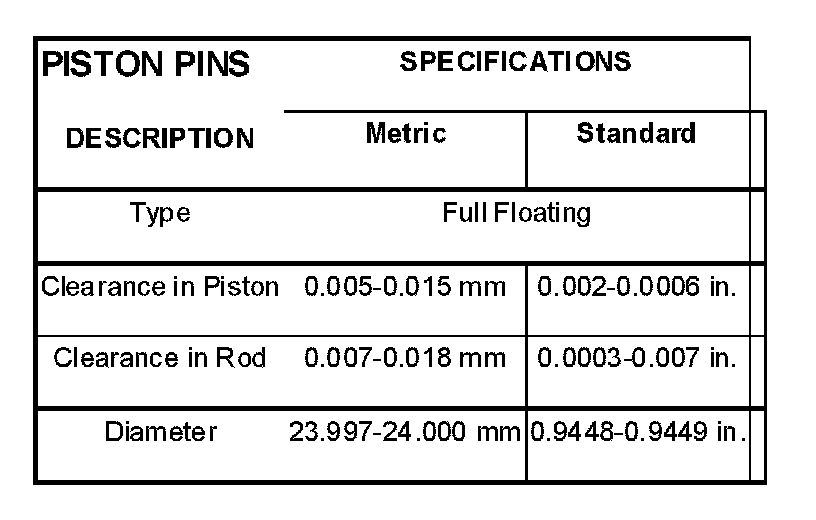

Piston Pins:
Piston Pins

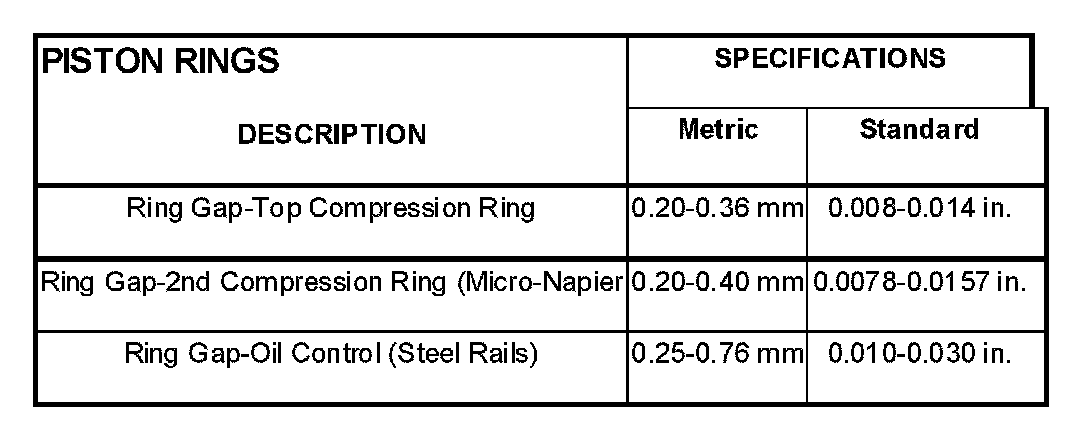

Piston Rings:
Piston Rings

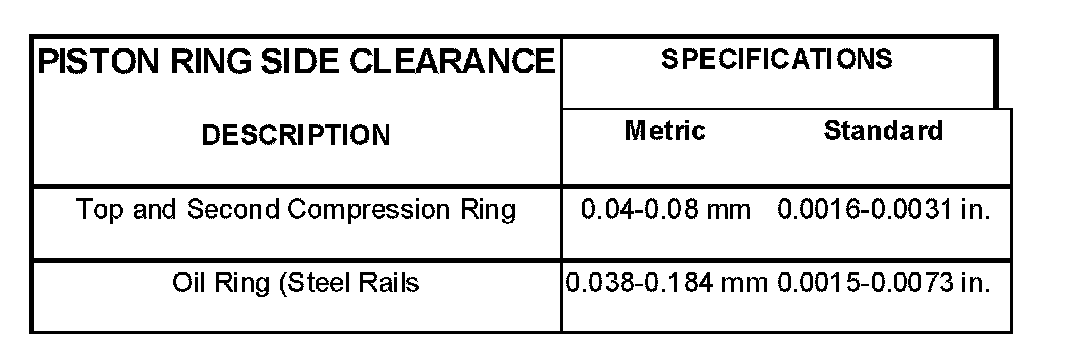

Piston Ring Side Clearance:
Piston Ring Side Clearance

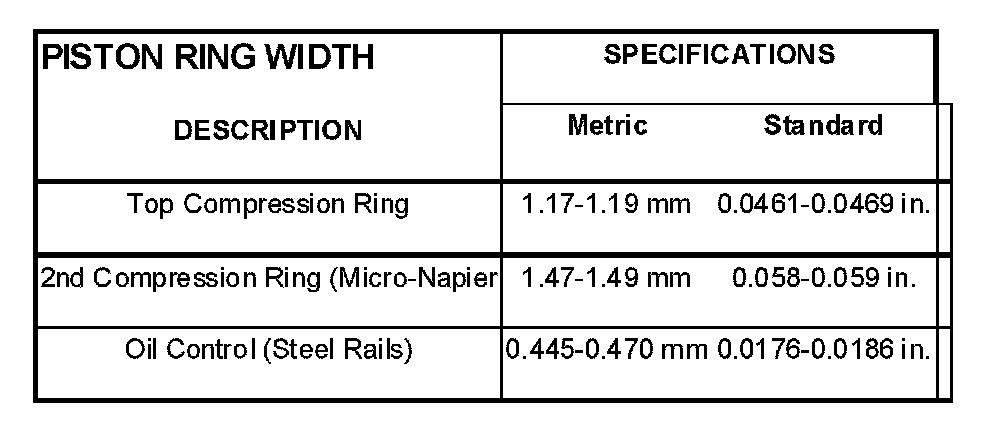

Piston Ring Width:
Piston Ring Width

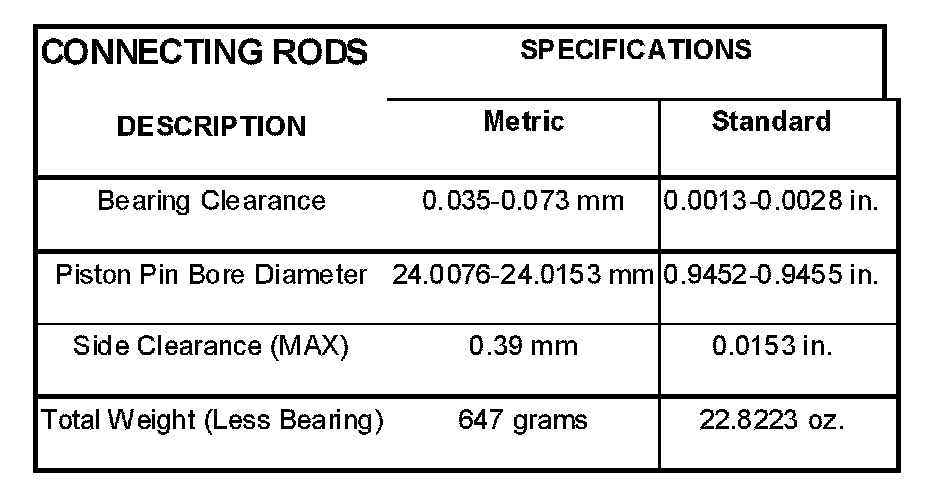

Connecting Rods:
Connecting Rods

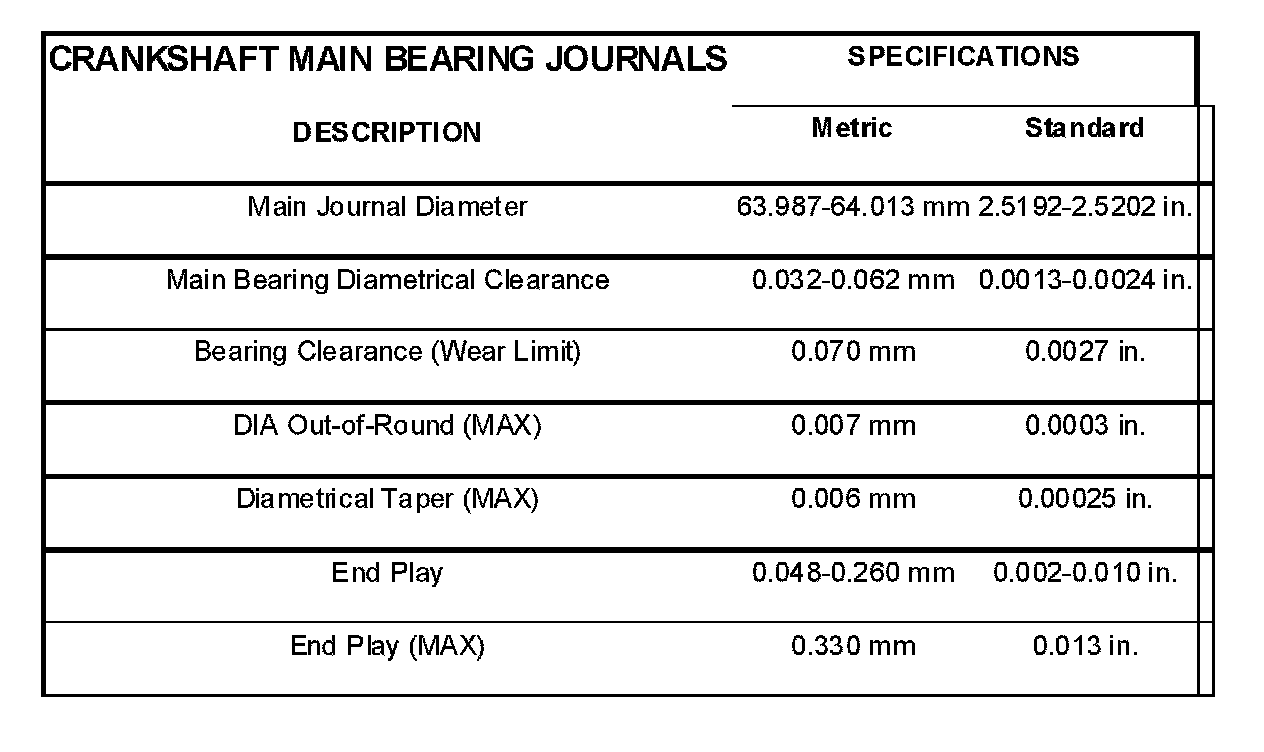

Crankshaft Main Bearing Journals:
Crankshaft Main Bearing Journals

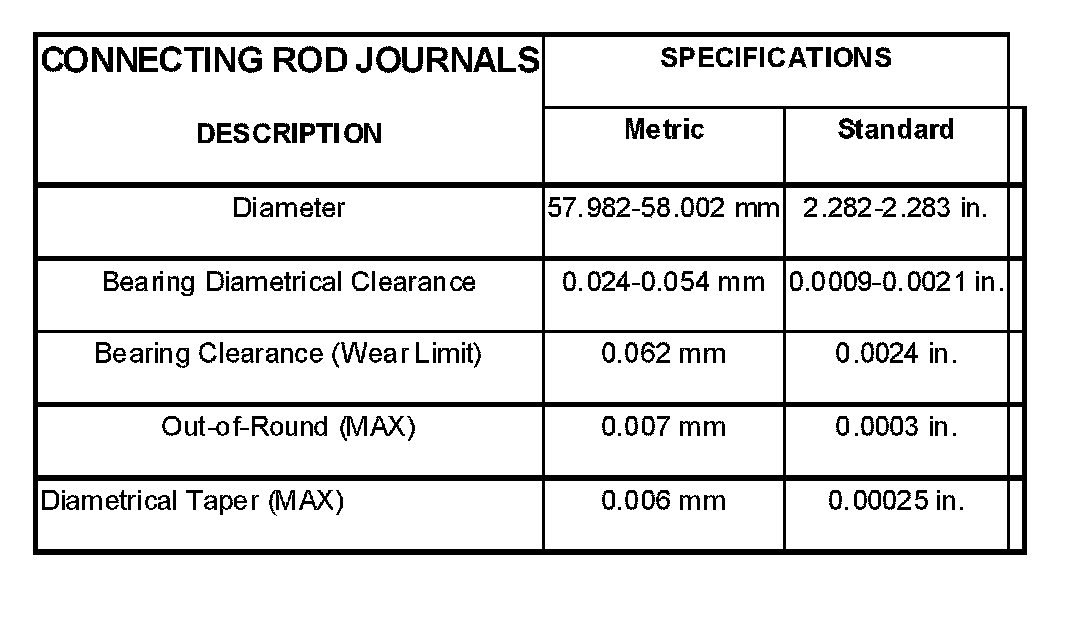

Connecting Rod Journals:
Connecting Rod Journals

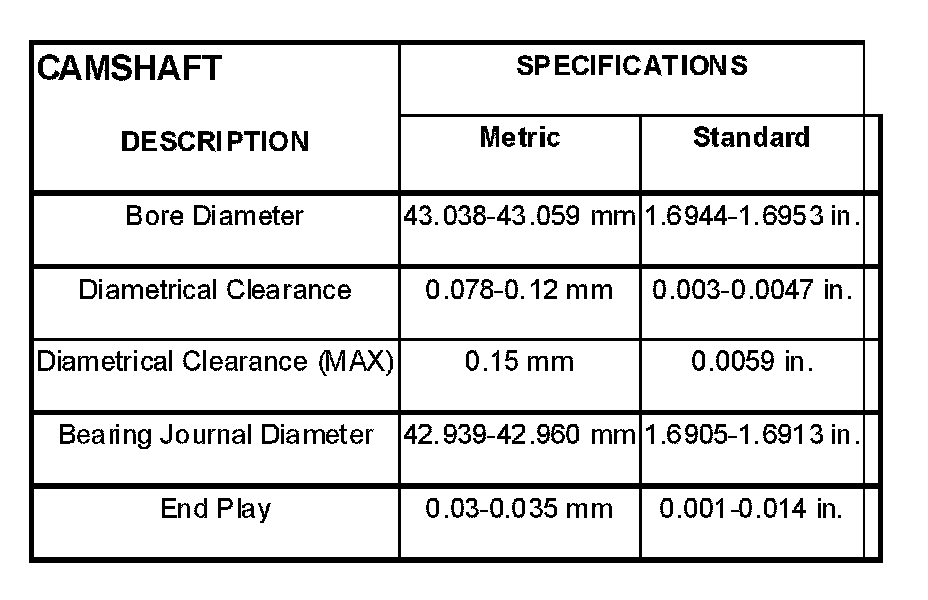

Camshaft:
Camshaft

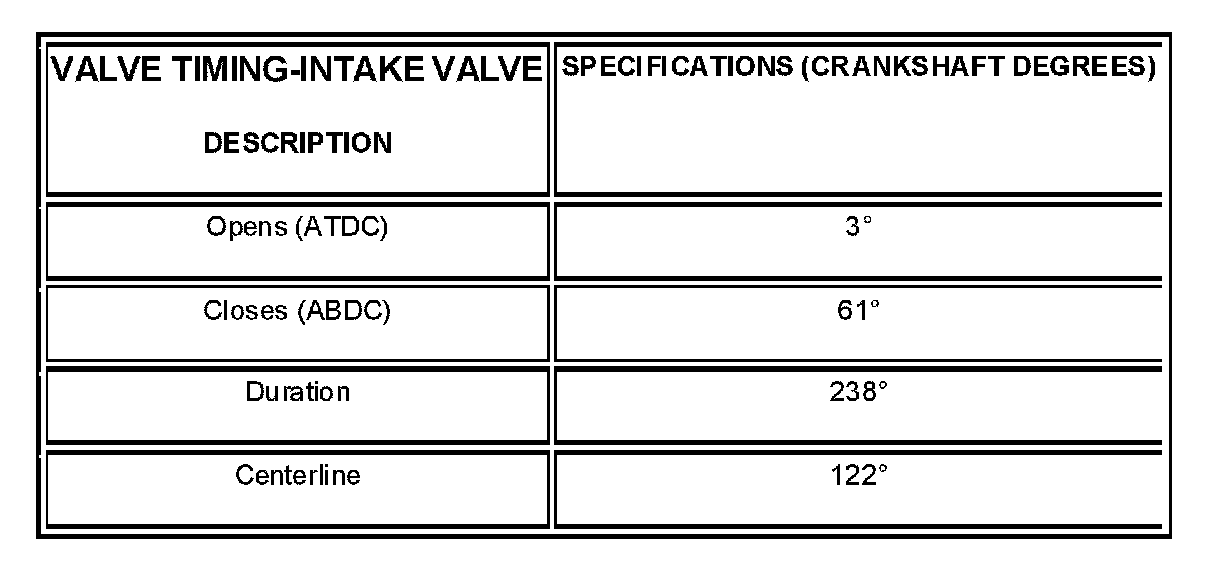

Valve Timing-Intake:
Valve Timing-Intake

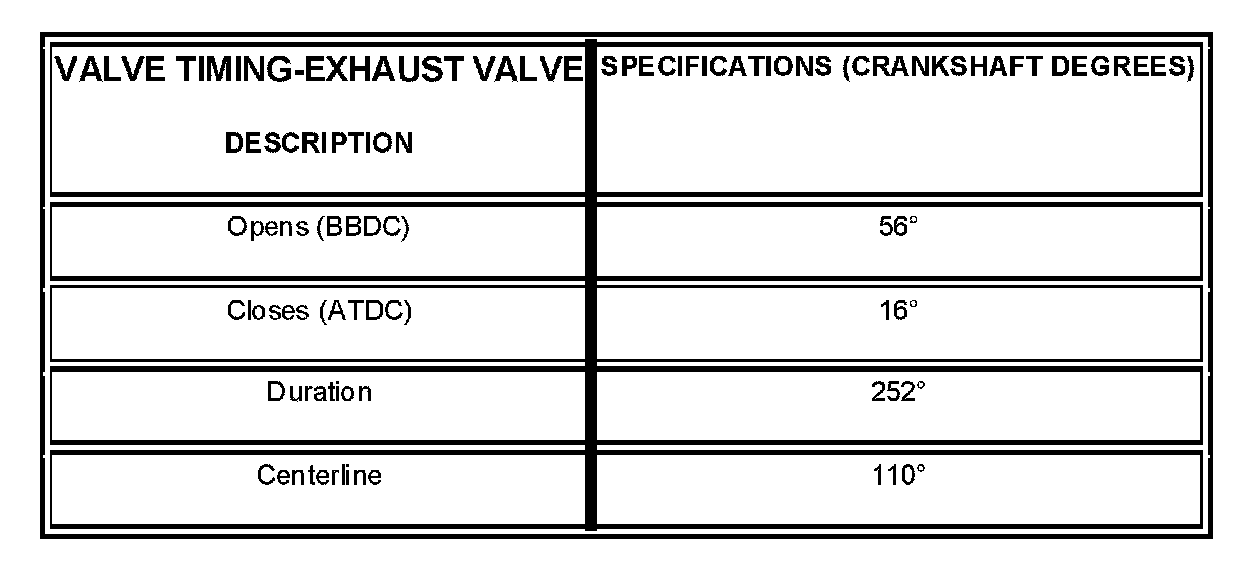

Valve Timing-Exhaust Valve:
Valve Timing-Exhaust Valve

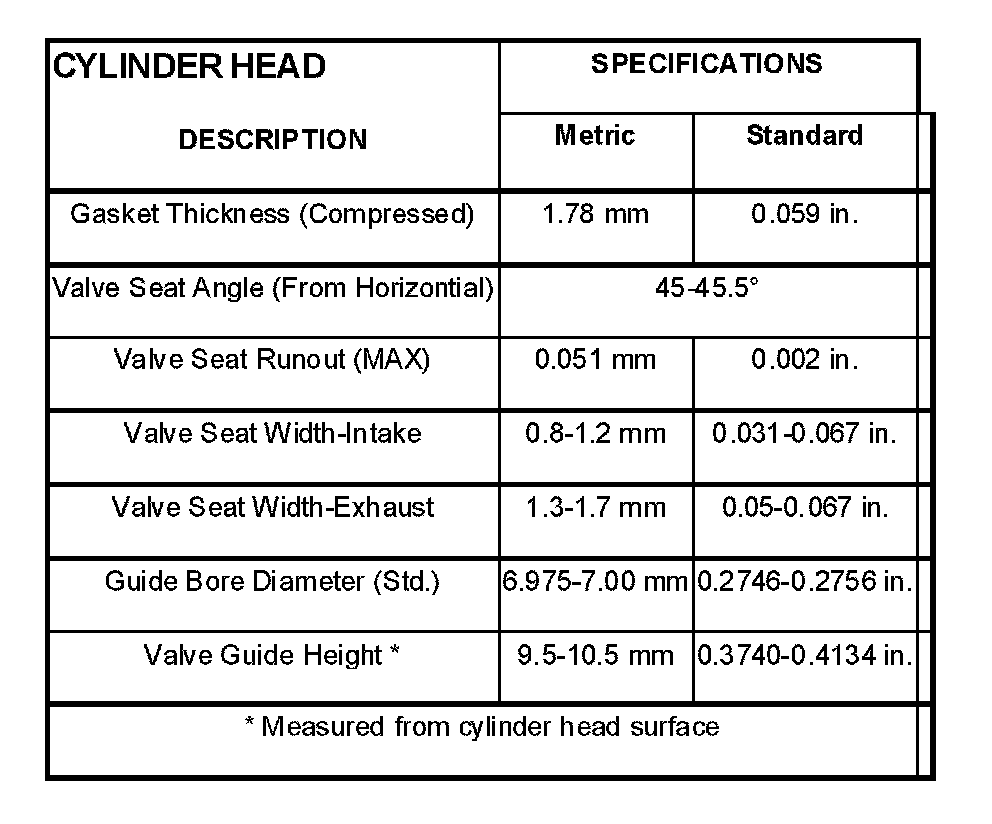

Cylinder Head:
Cylinder Head

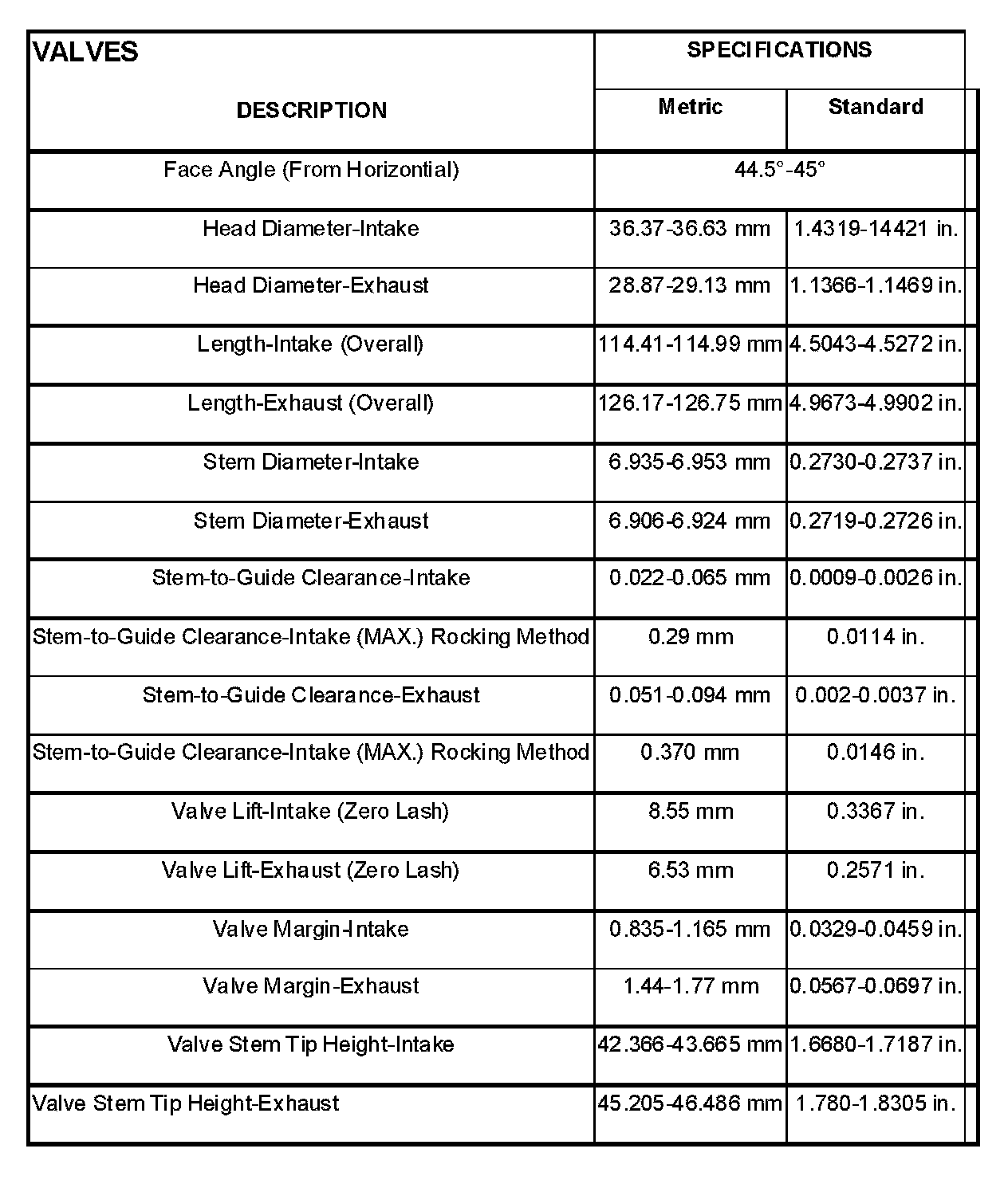

Valves:
Valves

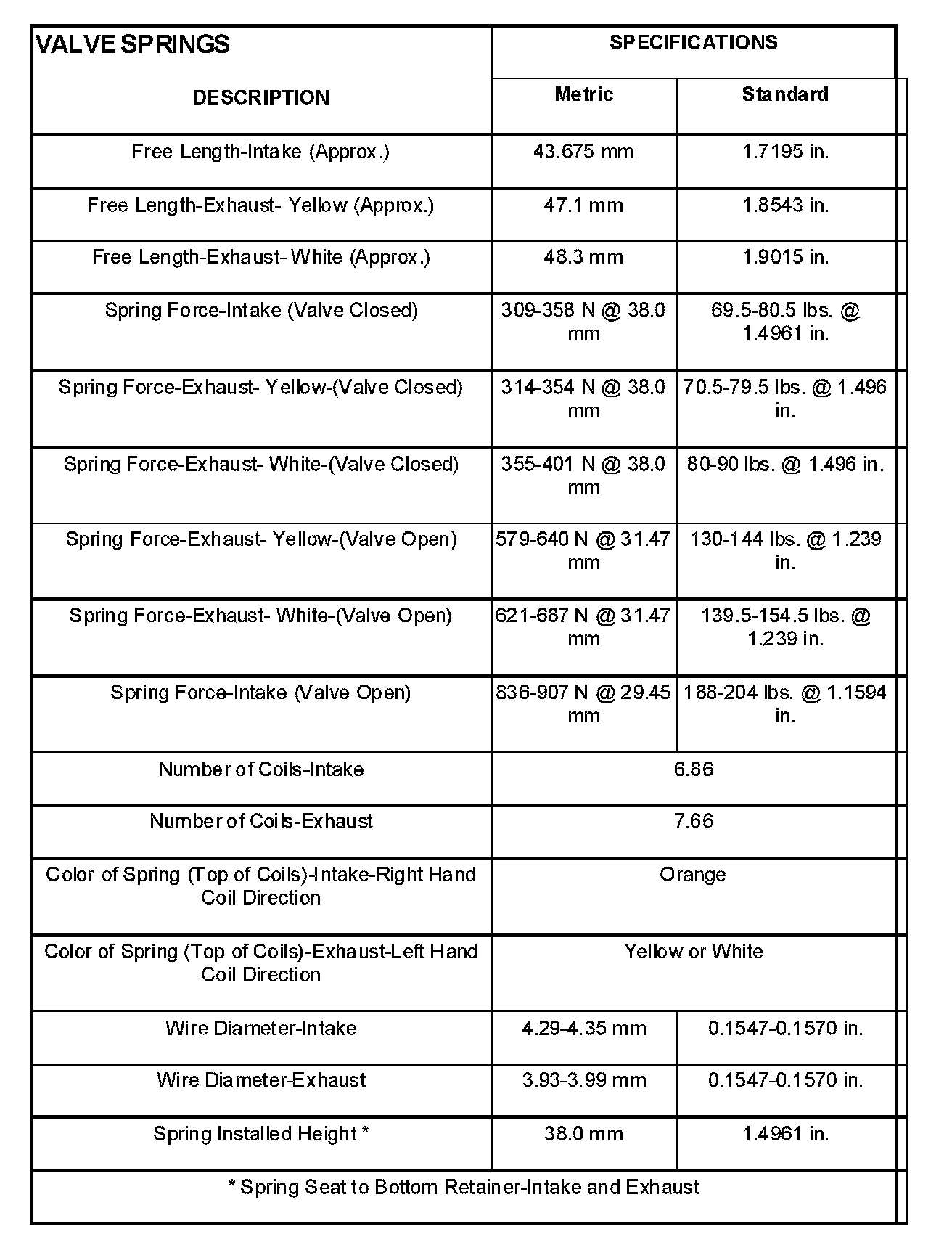

Valve Springs:
Valve Springs

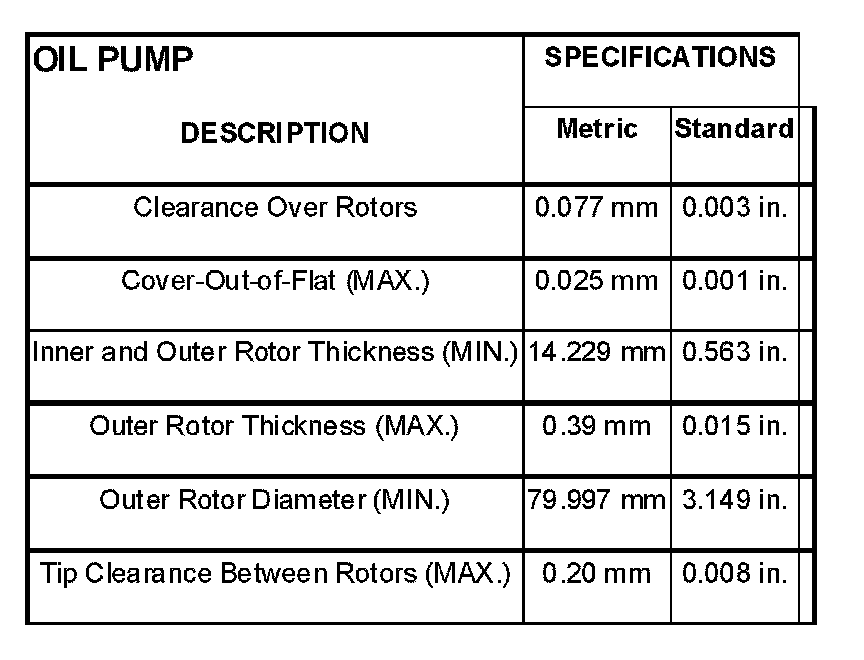

Oil Pump:
Oil Pump

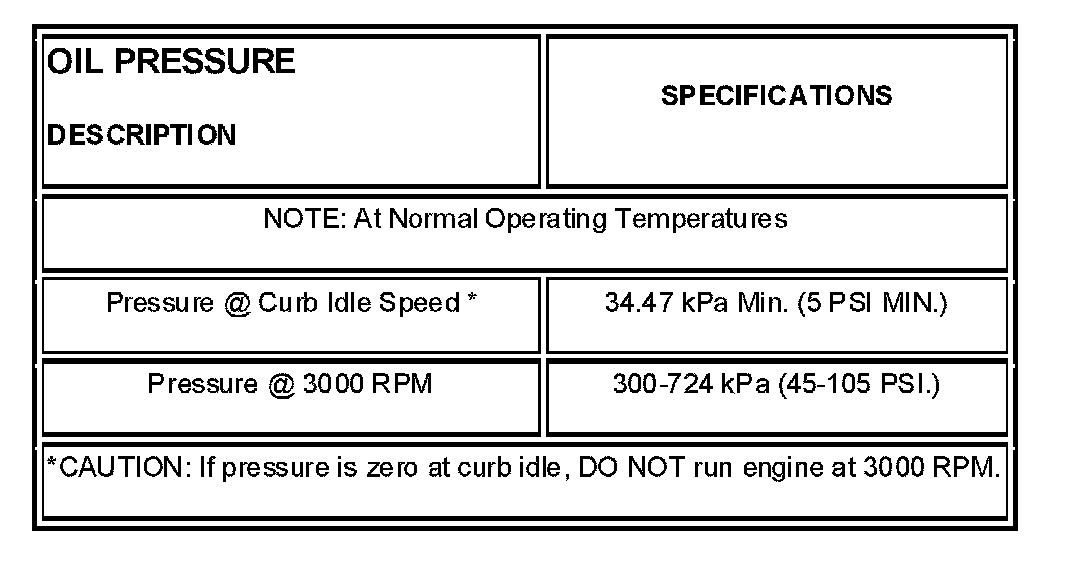

Oil Pressure:
Oil Pressure
