Powertrain Control Module C1 Connector End View

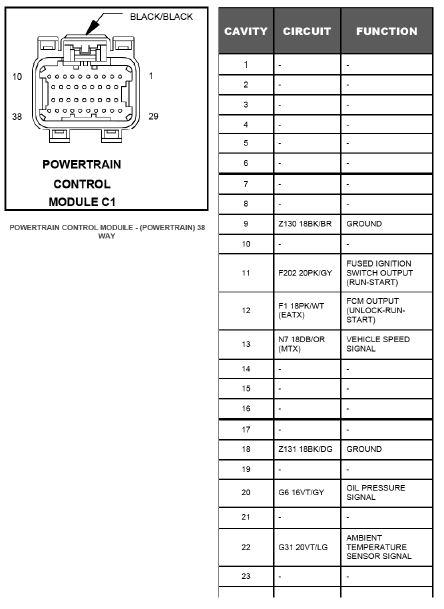

Fig 1: Powertrain Control Module C1 Connector End View & Legend (1 of 2)
G00575106

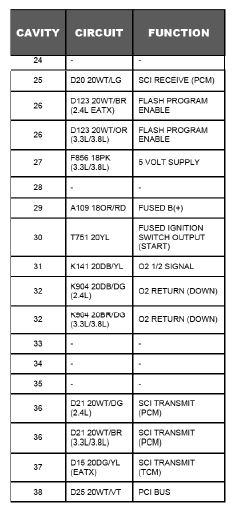

Fig 2: Powertrain Control Module C1 Connector End View & Legend (2 of 2)
G00575107
