Connector PINOUTS

Fig 1: Connector Pinouts For A/C Compressor Clutch - LT Gray 2 Way

G05552144

Courtesy of CHRYSLER

Fig 2: Connector Pinouts For A/C Pressure Sensor - Gray 4 Way

G05552145

Courtesy of CHRYSLER

Fig 3: Connector Pinouts For Ambient Temperature Sensor - Black 2 Way

G05552146

Courtesy of CHRYSLER

Fig 4: Connector Pinouts For Brake Fluid Level Switch - 2 Way

G05552147

Courtesy of CHRYSLER

Fig 5: Connector Pinouts For Brake Lamp Switch - Black 6 Way

G05552148

Courtesy of CHRYSLER

Fig 6: Connector Pinouts For Brake Transmission Shift Interlock Solenoid - Black 2 Way

G05552149

Courtesy of CHRYSLER

Fig 7: Connector Pinouts For Camshaft Position Sensor (GAS) - Black 3 Way

G05552150

Courtesy of CHRYSLER

Fig 8: Connector Pinouts For Clutch Pedal Switch (MTX) - Black 2 Way

G05552151

Courtesy of CHRYSLER

Fig 9: Connector Pinouts For Crankshaft Position Sensor (GAS) - Black 3 Way

G05552152

Courtesy of CHRYSLER

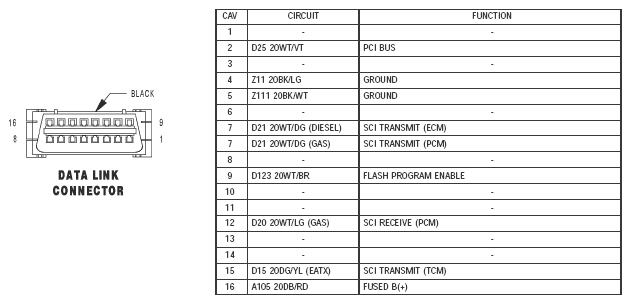

Fig 10: Connector Pinouts For Data Link Connector - Black 16 Way

G05552153

Courtesy of CHRYSLER

Fig 11: Connector Pinouts For EGR Solenoid - Black 6 Way

G05552154

Courtesy of CHRYSLER

Fig 12: Connector Pinouts For Engine Oil Pressure Switch - LT Green 2 Way

G05552155

Courtesy of CHRYSLER

Fig 13: Connector Pinouts For EVAP/Purge Solenoid - Black 2 Way

G05552156

Courtesy of CHRYSLER

Fig 14: Connector Pinouts For Fuel Injector No. 1 - 2 Way

G05552157

Courtesy of CHRYSLER

Fig 15: Connector Pinouts For Fuel Injector No. 2 - 2 Way

G05552158

Courtesy of CHRYSLER

Fig 16: Connector Pinouts For Fuel Injector No. 3 - 2 Way

G05552159

Courtesy of CHRYSLER

Fig 17: Connector Pinouts For Fuel Injector No. 4 (GAS) - 2 Way

G05552160

Courtesy of CHRYSLER

Fig 18: Connector Pinouts For Fuel Injector No. 5 - 2 Way

G05552161

Courtesy of CHRYSLER

Fig 19: Connector Pinouts For Fuel Injector No. 6 - 2 Way

G05552162

Courtesy of CHRYSLER

Fig 20: Connector Pinouts For Fuel Pump Module - LT Gray 4 Way

G05552163

Courtesy of CHRYSLER

Fig 21: Connector Pinouts For Generator - Black 2 Way

G05552164

Courtesy of CHRYSLER

Fig 22: Connector Pinouts For Idle Air Control Motor (GAS) - Black 2 Way

G05552165

Courtesy of CHRYSLER

Fig 23: Connector Pinouts For Ignition Coil (2.4L) - Black 3 Way

G05552166

Courtesy of CHRYSLER

Fig 24: Connector Pinouts For Ignition Coil - DK Gray 4 Way

G05552167

Courtesy of CHRYSLER

Fig 25: Connector Pinouts For Inlet Air Temperature Sensor - Black 2 Way

G05552168

Courtesy of CHRYSLER

Fig 26: Identifying Intergrated Power Module (Gas)

G05552169

Courtesy of CHRYSLER

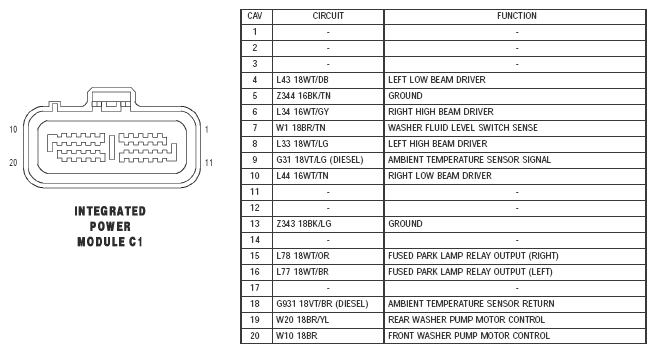

Fig 27: Connector Pinouts For Integrated Power Module C1 - 20 Way

G05552170

Courtesy of CHRYSLER

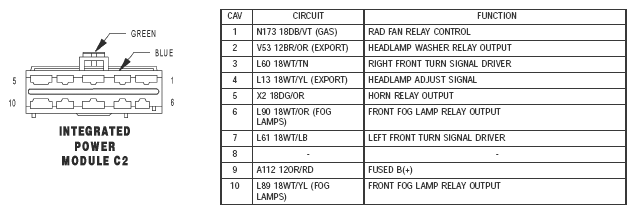

Fig 28: Connector Pinouts For Integrated Power Module C2- Green/Blue 10 Way

G05552171

Courtesy of CHRYSLER

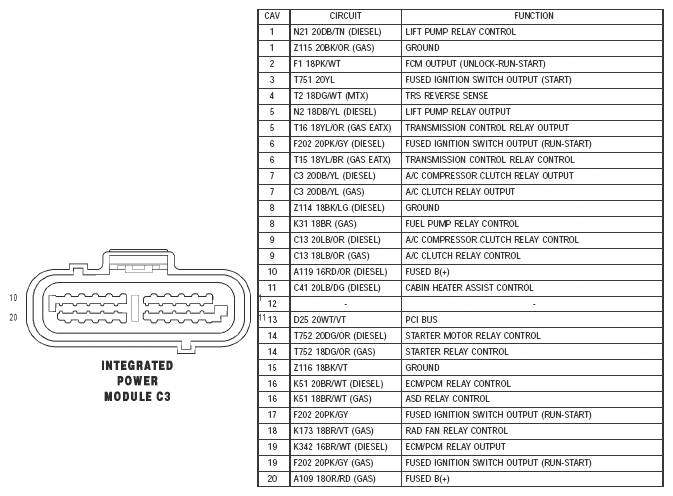

Fig 29: Connector Pinouts For Integrated Power Module C3 - 20 Way

G05552172

Courtesy of CHRYSLER

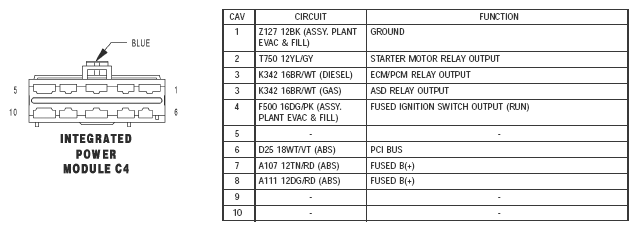

Fig 30: Connector Pinouts For Integrated Power Module C4 - Blue 10 Way

G05552173

Courtesy of CHRYSLER

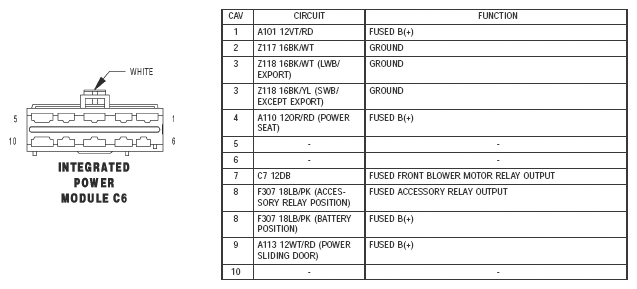

Fig 31: Connector Pinouts For Integrated Power Module C6 - White 10 Way

G05552174

Courtesy of CHRYSLER

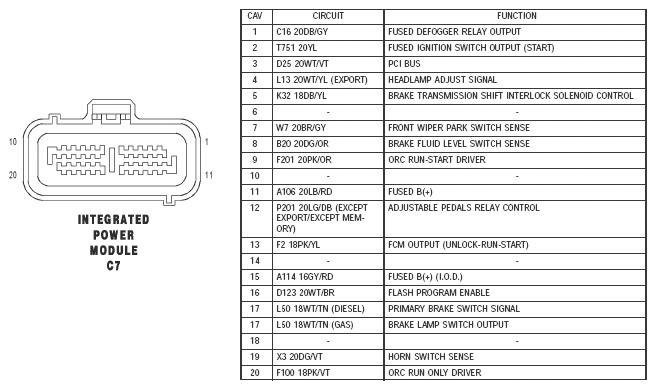

Fig 32: Connector Pinouts For Integrated Power Module C7 - 20 Way

G05552175

Courtesy of CHRYSLER

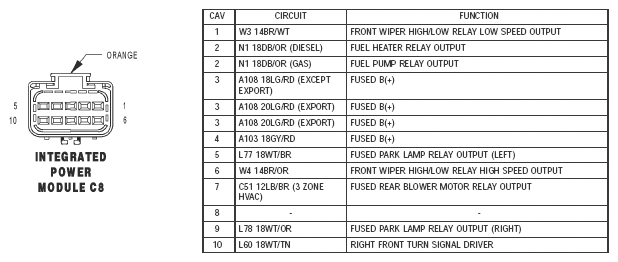

Fig 33: Connector Pinouts For Integrated Power Module C8 - Orange 10 Way

G05552176

Courtesy of CHRYSLER

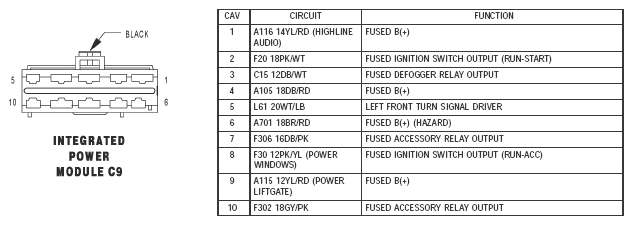

Fig 34: Connector Pinouts For Integrated Power Module C9 - Black 10 Way

G05552177

Courtesy of CHRYSLER

Fig 35: Connector Pinouts For Knock Sensor - Black 2 Way

G05552178

Courtesy of CHRYSLER

Fig 36: Connector Pinouts For Left Speed Control Switch - White 2 Way

G05552179

Courtesy of CHRYSLER

Fig 37: Connector Pinouts For Manifold Absolute Pressure Sensor (GAS) - Gray 3 Way

G05552180

Courtesy of CHRYSLER

Fig 38: Connector Pinouts For Natural Vacuum Leak Detection Assembly (Except Export) - LT Gray 3 Way

G05552181

Courtesy of CHRYSLER

Fig 39: Connector Pinouts For Oxygen Sensor 1/1 Upstream - 4 Way 2.4L

G05552182

Courtesy of CHRYSLER

Fig 40: Connector Pinouts For Oxygen Sensor 1/1 Upstream - 4 Way 3.3L/3.8L

G05552183

Courtesy of CHRYSLER

Fig 41: Connector Pinouts For Oxygen Sensor 1/2 Downstream - 4 Way

G05552184

Courtesy of CHRYSLER

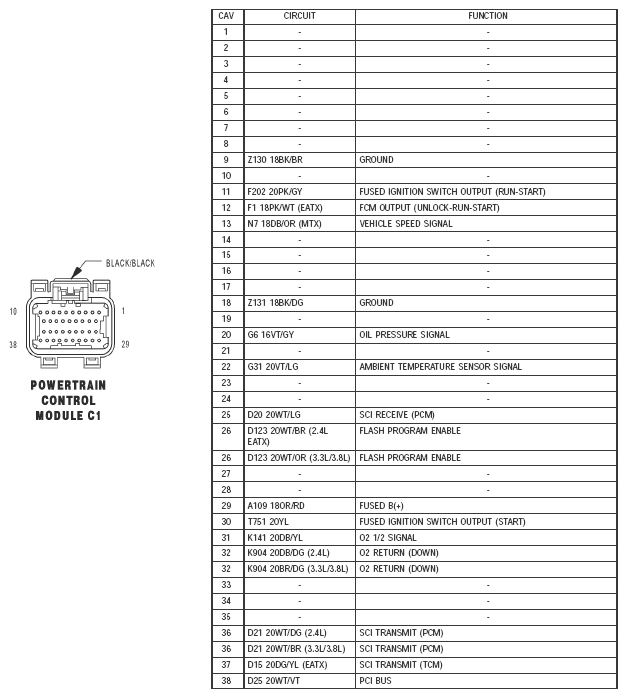

Fig 42: Connector Pinouts For Powertrain Control Module C1 - Black/Black 38 Way

G05552185

Courtesy of CHRYSLER

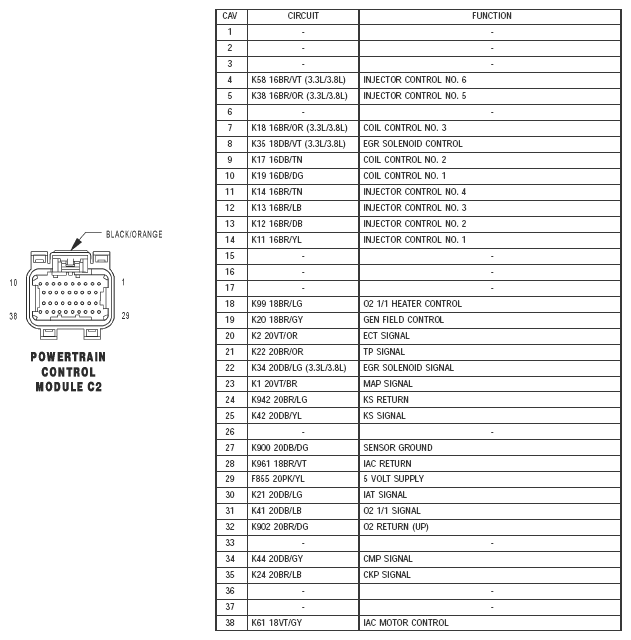

Fig 43: Connector Pinouts For Powertrain Control Module C2 - Black/Orange 38 Way

G05552186

Courtesy of CHRYSLER

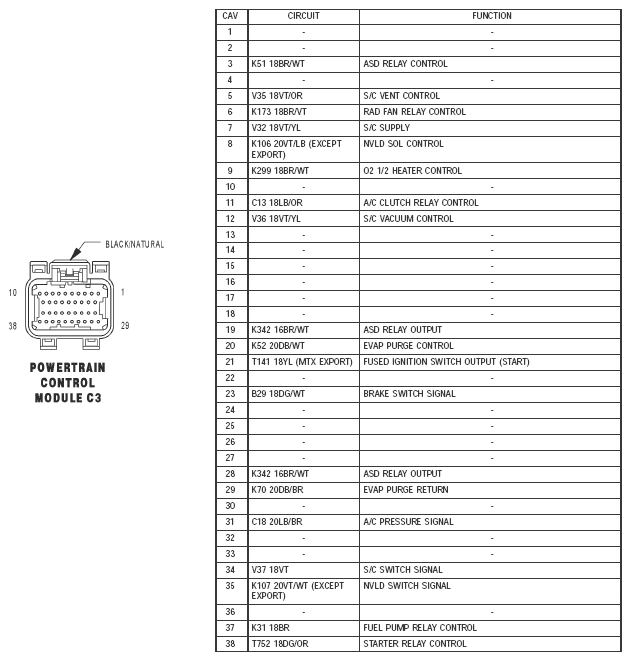

Fig 44: Connector Pinouts For Powertrain Control Module C3 - Black/Natural 38 Way

G05552187

Courtesy of CHRYSLER

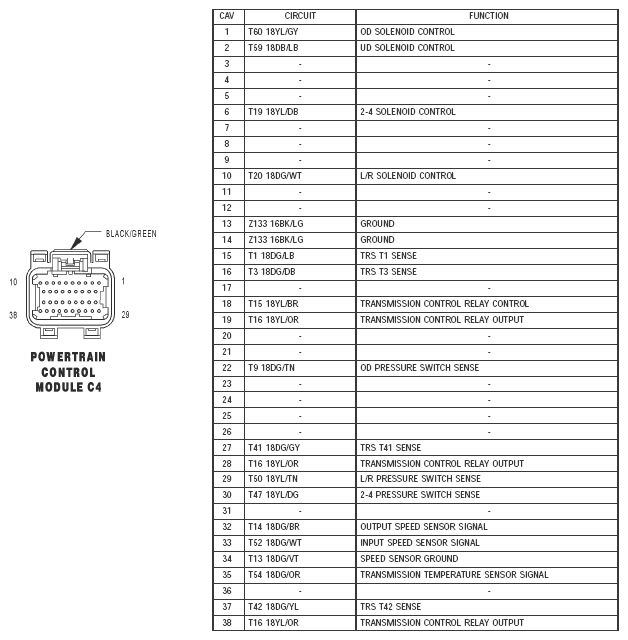

Fig 45: Connector Pinouts For Powertrain Control Module C4 - Black/Green 38 Way

G05552188

Courtesy of CHRYSLER

Fig 46: Connector Pinouts For Radiator Fan No. 1 (Gas) - Black 2 Way

G05552189

Courtesy of CHRYSLER

Fig 47: Connector Pinouts For Radiator Fan No. 2 (Gas) - Black 2 Way

G05552190

Courtesy of CHRYSLER

Fig 48: Connector Pinouts For Radiator Fan Relay (Gas) - Way

G05552191

Courtesy of CHRYSLER

Fig 49: Connector Pinouts For Right Speed Control Switch - White 2 Way

G05552192

Courtesy of CHRYSLER

Fig 50: Connector Pinouts For Speed Control Servo (Gas) - Black 4 Way

G05552193

Courtesy of CHRYSLER

Fig 51: Connector Pinouts For Throttle Position Sensor (Gas) - Gray 3 Way

G05552194

Courtesy of CHRYSLER

Fig 52: Connector Pinouts For Vehicle Speed Sensor (MTX) - Black 3 Way

G05552195

Courtesy of CHRYSLER
