Schematic Diagrams

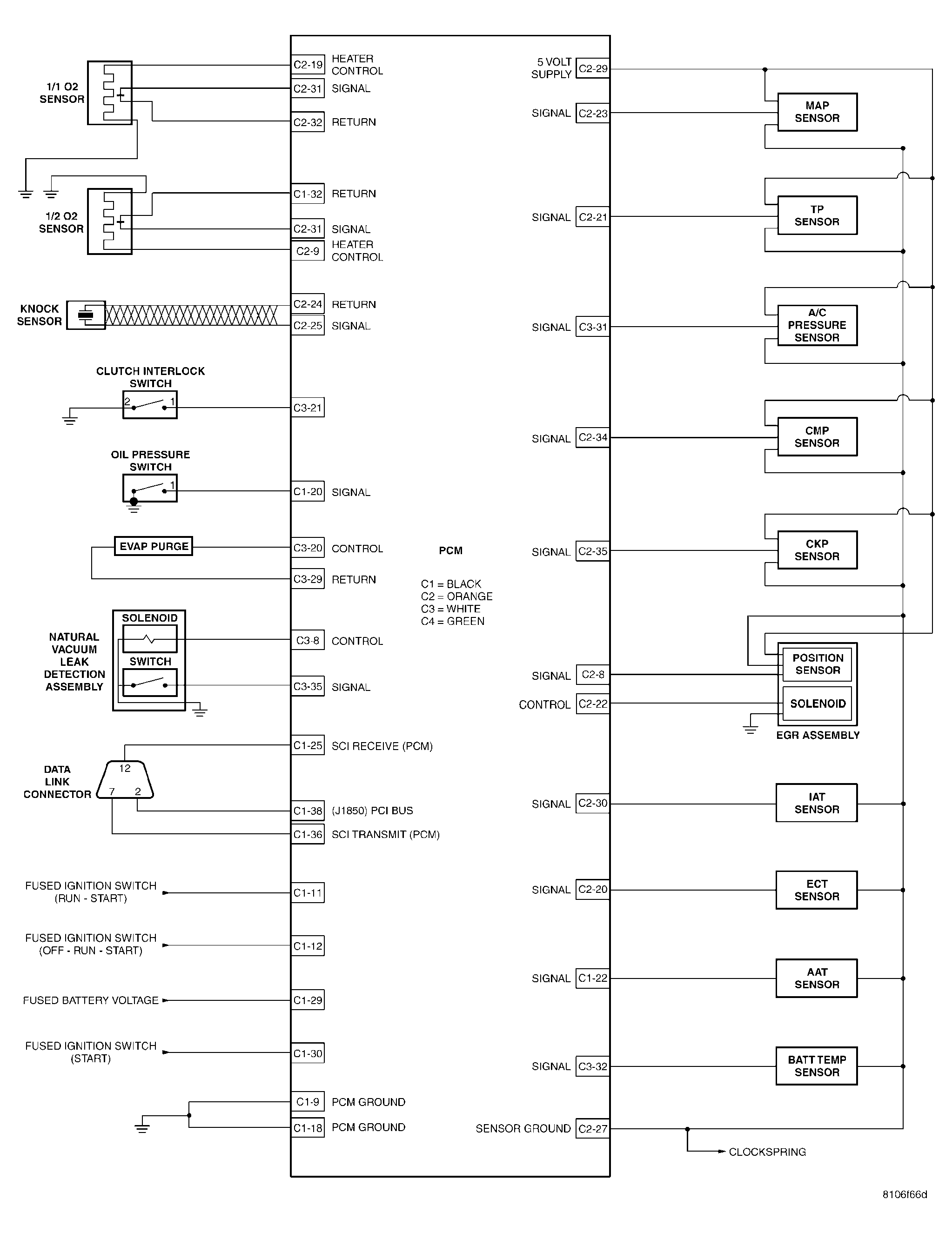

Fig 1: Powertrain (Supplement) - Schematic Diagram (1 Of 2)
G04528135Courtesy of CHRYSLER

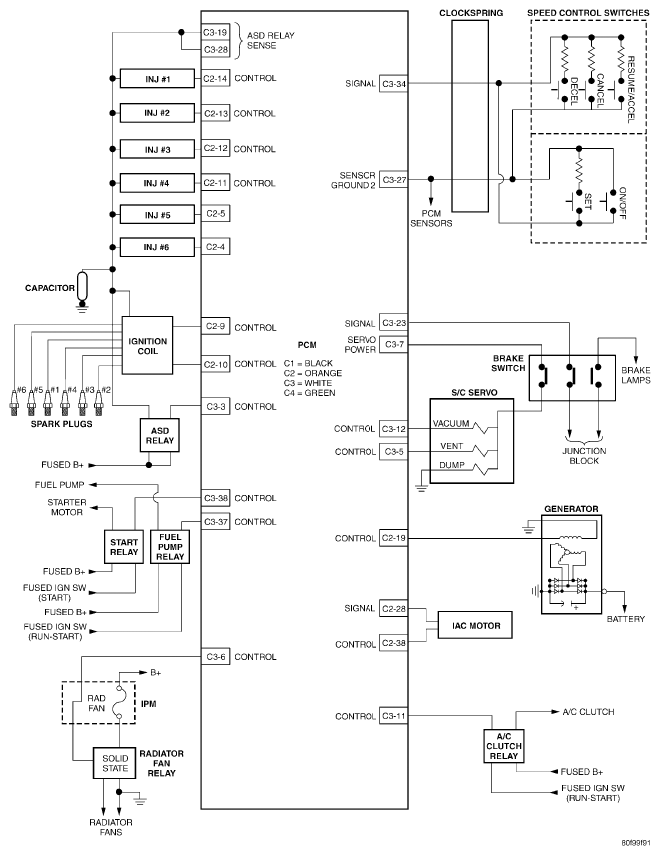

Fig 2: Powertrain (Supplement) - Schematic Diagram (2 Of 2)
G04763153Courtesy of CHRYSLER
