Circuit Schematic

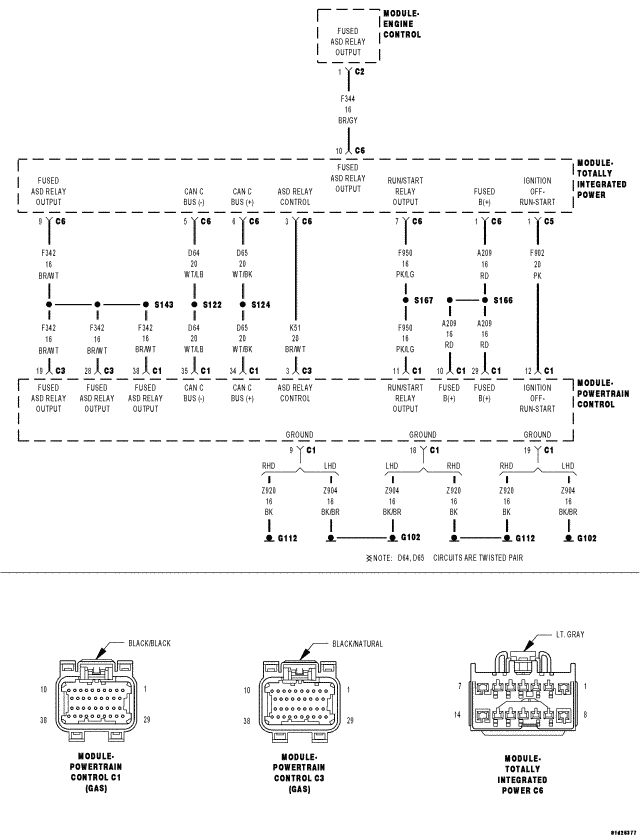

Fig 1: Auto Shutdown Control Circuit Schematic

GC0070368

Courtesy of CHRYSLER LLC
