Bushing-Rear CROSSMEMBER Spring Link

Raise and support vehicle. Refer to STANDARD PROCEDURE .
Access and remove rear spring on side of repair. Refer to REMOVAL .

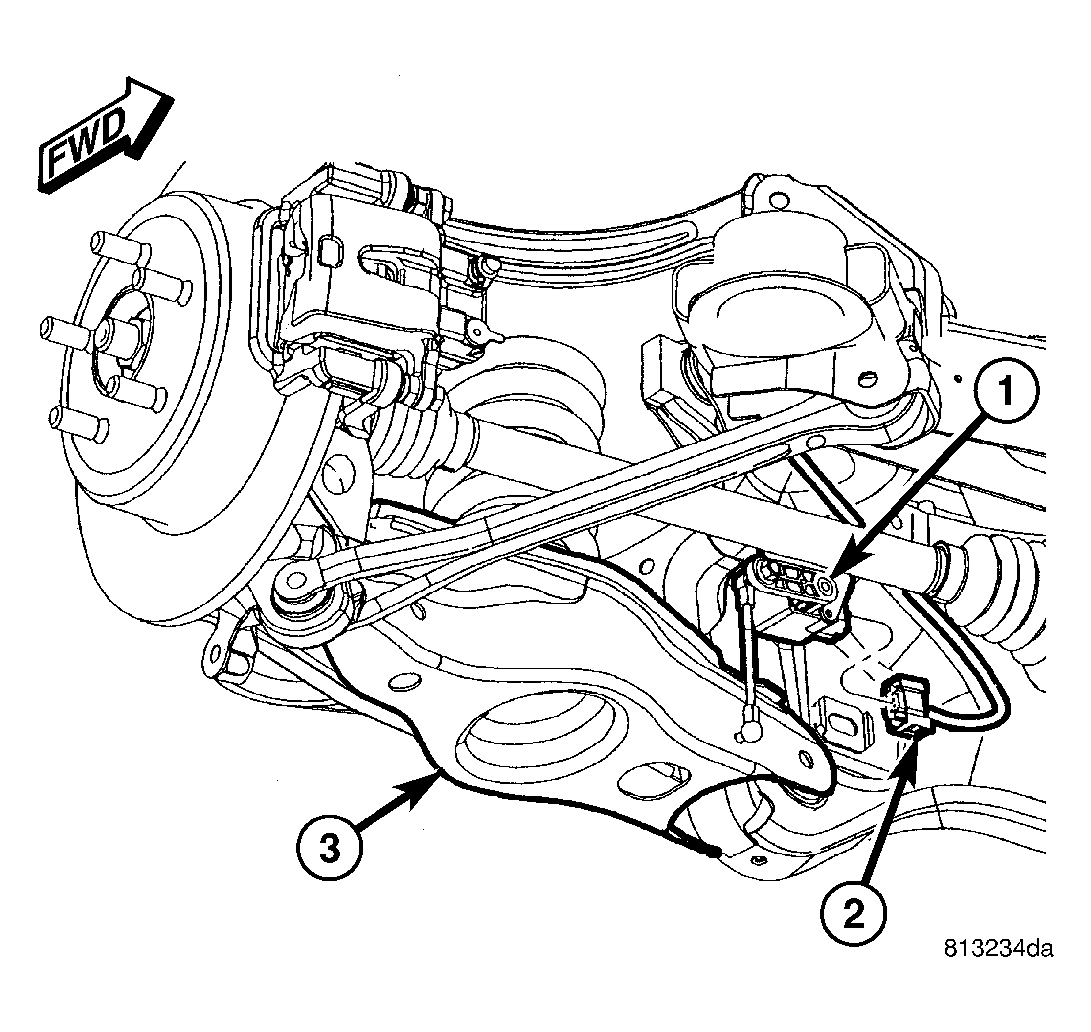

Fig 1: Headlamp Leveling Sensor
Courtesy of CHRYSLER LLC
Export Only - If servicing right side bushing, disconnect headlamp leveling sensor (1) link at spring link (3).

Fig 2: Spring Link Mounting
Courtesy of CHRYSLER LLC
Remove bolt and nut (1) fastening spring link (4) to crossmember.

Position spring link downward, away from bushing in crossmember.

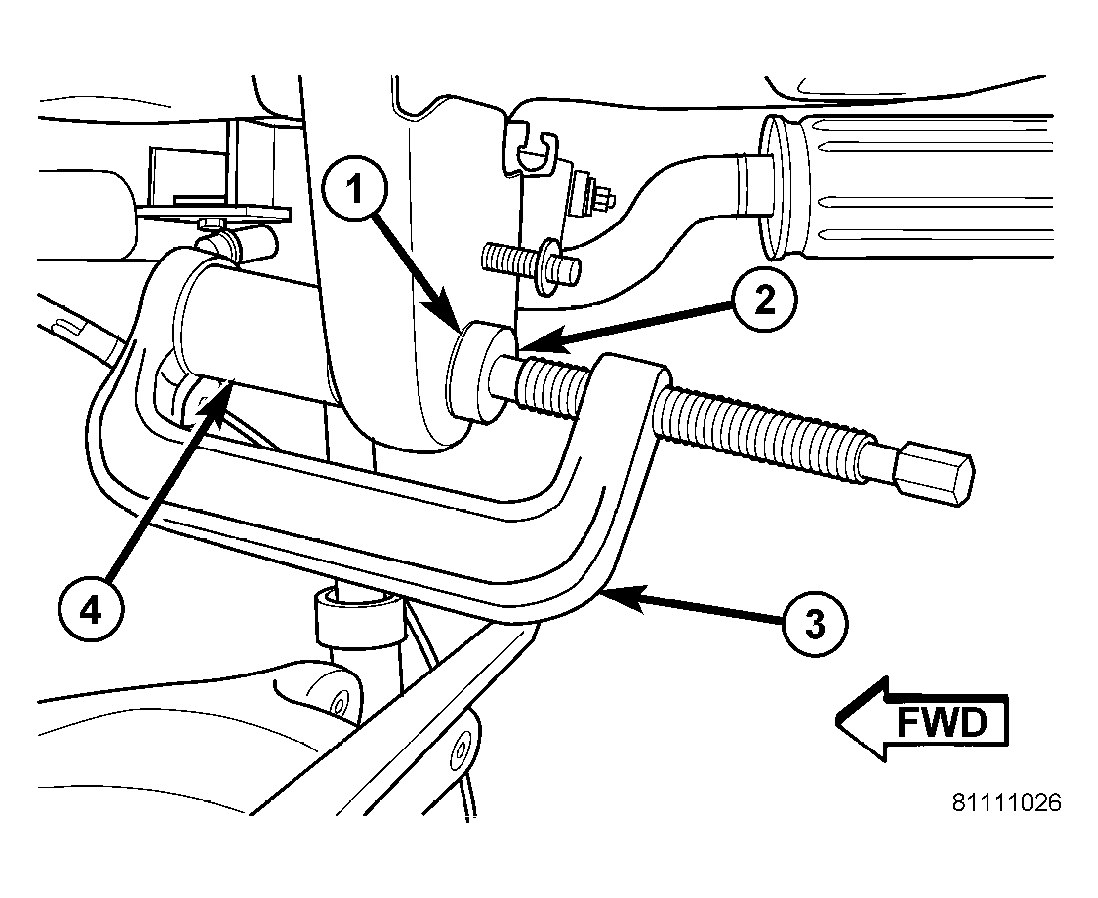

Fig 3: Removing Spring Link Bushing

Courtesy of CHRYSLER LLC

1 - BUSHING

2 - REMOVER 9032-2

3 - PRESS C-4212F

4 - RECEIVER 9032-1

NOTE: Prior to using Press (3), Special Tool C-4212F, lubricate screw-drive threads to provide ease of use and promote tool longevity.

Assemble tools over bushing as shown (See list). Ensure Receiver, Special Tool 9032-1, sets against crossmember and not welds.
1. (2) Remover 9032-2
2. (3) Press C-4212F
3. (4) Receiver 9032-1
Tighten Press screw-drive, pressing bushing out of crossmember.
