Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.

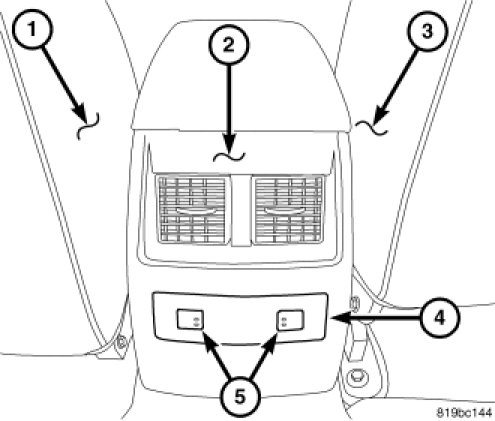

2. Using an appropriate flat bladed tool, remove the heated seat switch/modules (5) from the console (2) by gently prying up from the edge of the switch/module bezel (4). Take care not to scratch or damage the console or bezel in any way.




3. Disconnect the switch/module electrical connectors (2) and (4).
4. Using an appropriate flat bladed tool, remove the heated seat switch/module (3) from the bezel (1).
