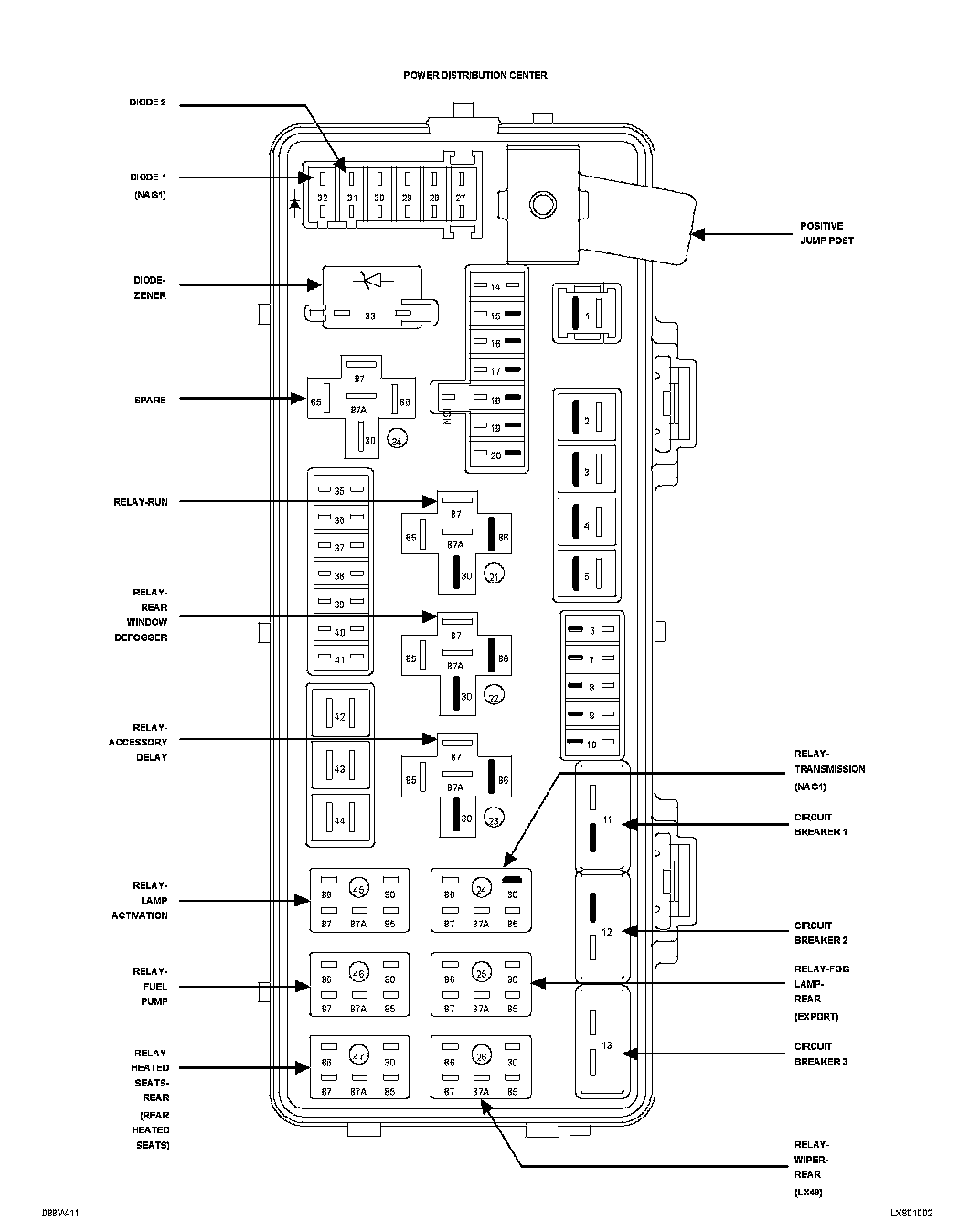

Diode-Zener

Component ID: 88
Component : DIODE-ZENER

Connector:
Name : DIODE-ZENER
Color :
# of pins : 2




Pin Circuit Description
1 Z914 16BK/GY GROUND
Pin Circuit Description
1 Z914 14BK/GY GROUND
2 A33 16RD/YL FUSED B(+)
2 A33 14RD/YL FUSED B(+)
