Sensor-Knock 2

Component ID: 513

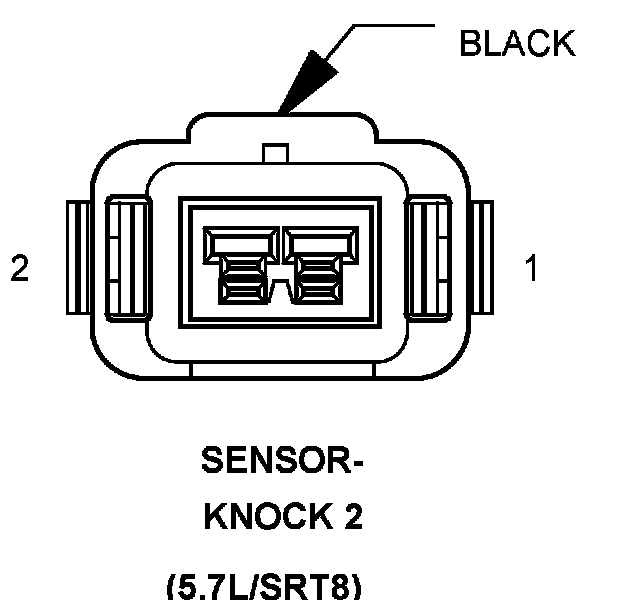

Component : SENSOR-KNOCK 2

Connector:
Name : SENSOR-KNOCK 2
Color : BLACK
# of pins : 2
Qualifier : (5.7L/SRT8)




Pin Circuit Description
1 K924 20WT/BR KS 2 RETURN
2 K242 20BR/WT KS 2 SIGNAL

Component Location - 24




Component Location - 27
