Installation

3.5L





CAUTION: Over or under tightening effects knock sensor performance, possibly causing improper spark control.

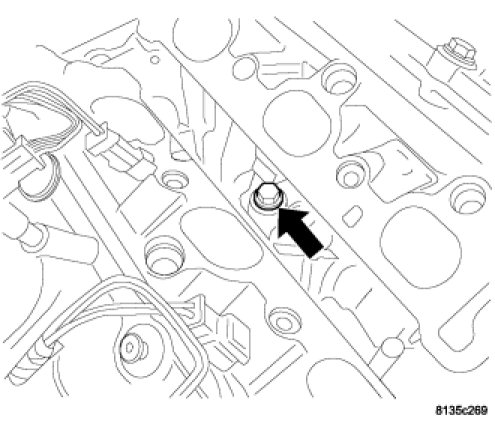

1. Install knock sensor and tighten to 20 Nm (15 ft. lbs.).

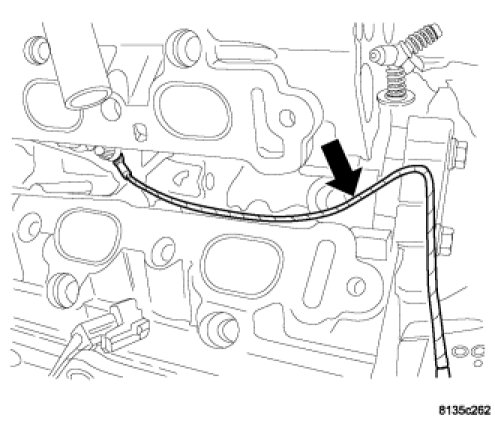

2. Route the knock sensor wire in the proper location.
3. Install the intake manifold, Intake Manifold - Installation

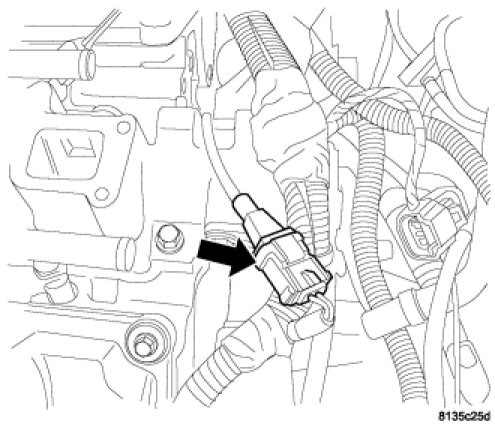

4. Connect electrical connector.
5. Connect negative battery cable and tighten nut to 5 Nm (45 in. lbs.).
