Sensor-Output Speed

Component ID: 390
Component : SENSOR-OUTPUT SPEED

Connector:
Name : SENSOR-OUTPUT SPEED
Color : BLACK
# of pins : 2




Pin Circuit Description
1 T14 20DG/BR OUTPUT SPEED SIGNAL
2 T13 20DG/VT SPEED SENSOR GROUND

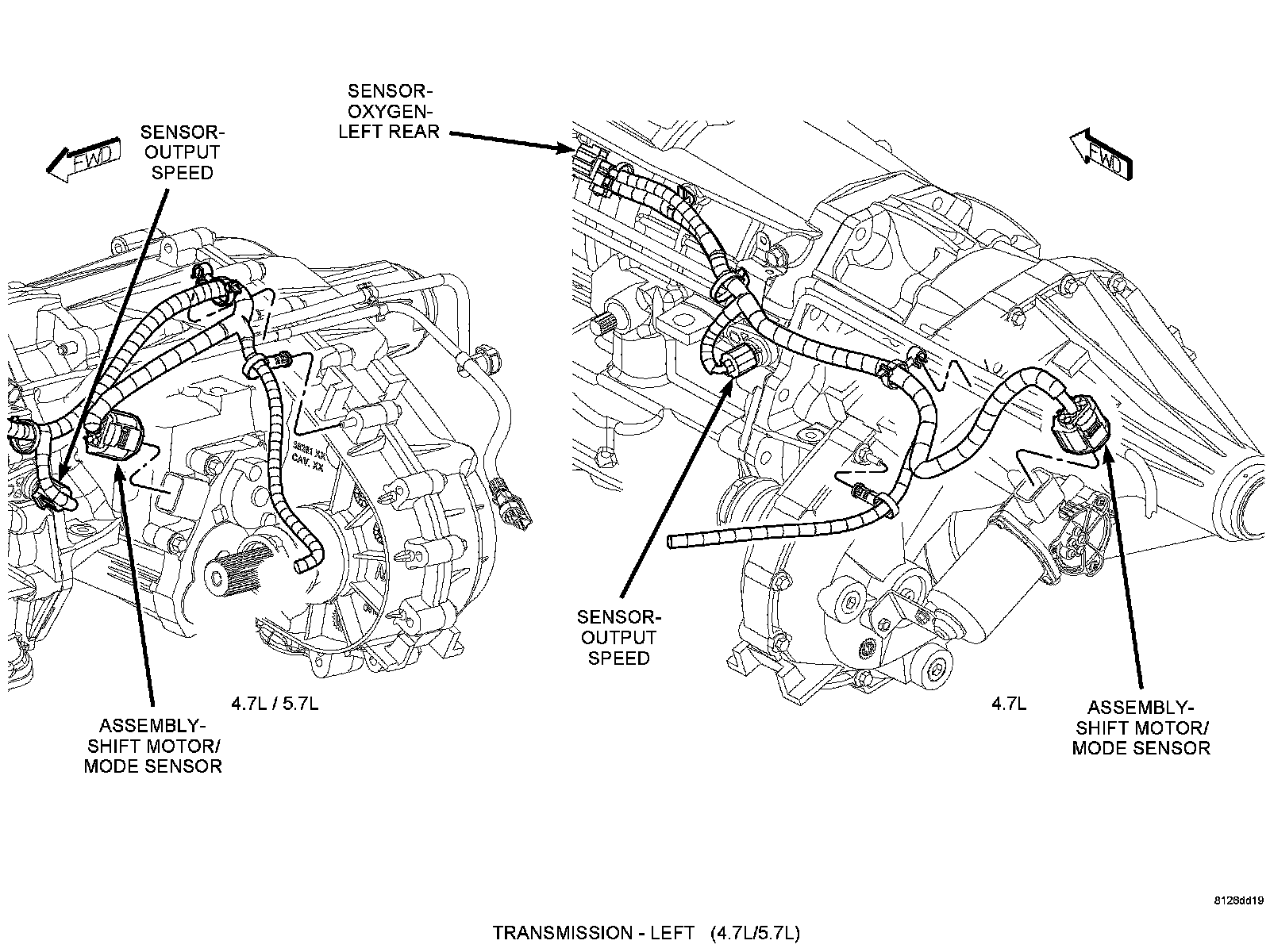

Component Location - 14




Component Location - 21




Component Location - 26




Component Location - 19
