P0410-Secondary Air Injection System: Notes

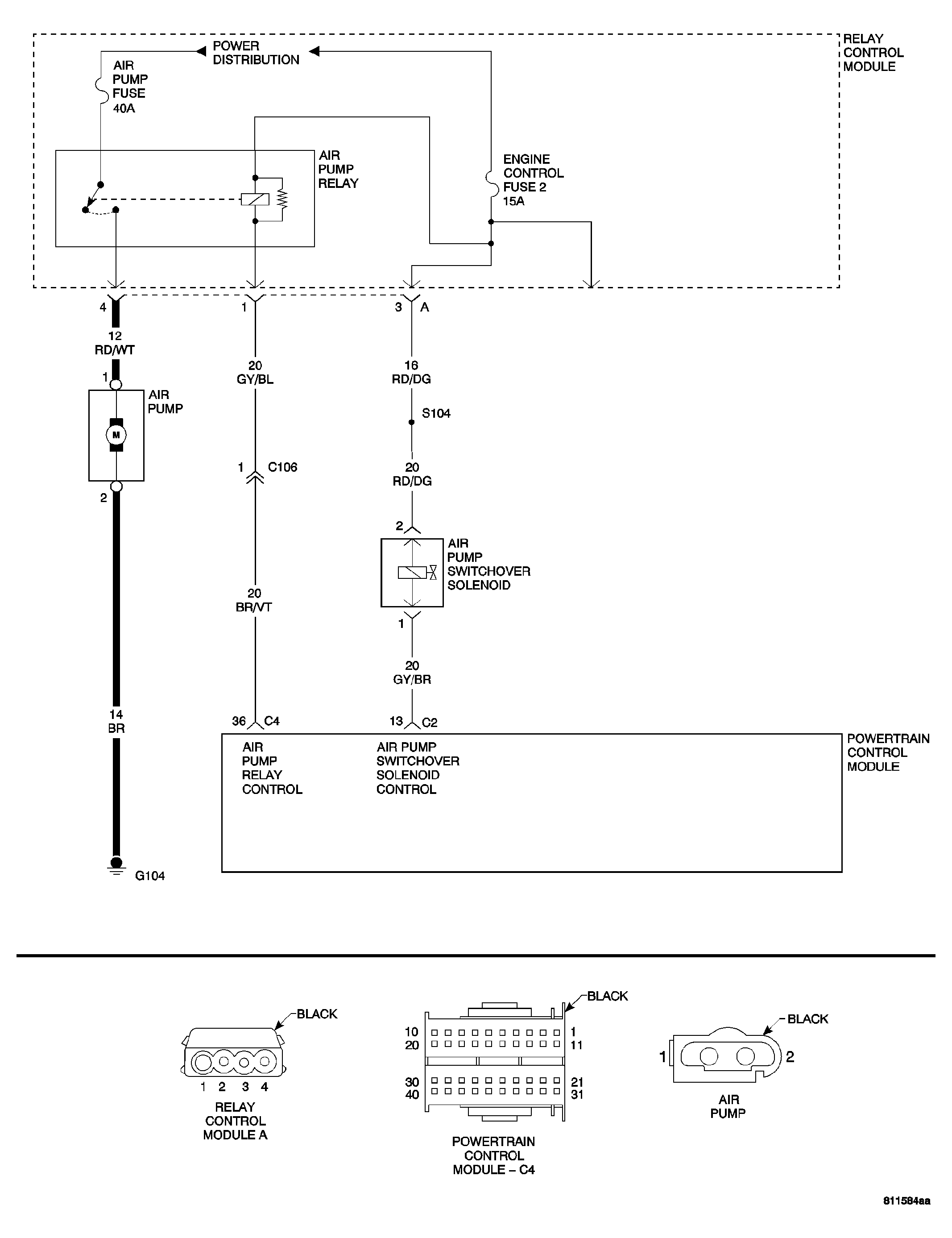

Fig 1: Air Pump System Circuit Schematic

Courtesy of CHRYSLER LLC

1. When Monitored  : Once per driving cycle with the engine at idle, air conditioning is off, barometric pressure is greater than 78 kPa (11 psi), engine coolant temperature is greater than 50°C (122°F) and no other DTC set.
2. Set Condition  : When the test is enabled, the O2 Sensor must increase by at least 23% (rich).

For a complete Powertrain Control Module Circuit Diagram, refer to SCHEMATICS AND DIAGRAMS .
