Engine & Automatic Transmission Cooling System: Engine: Fan-Radiator: Installation: Installation

Fig 1: Removing/Installing Radiator Fan

Courtesy of CHRYSLER LLC

NOTE: Lightly lubricate the two locating studs on the bottom of the radiator fan prior to installation.

1. Gently lower the radiator fan into the vehicle.
2. Carefully pry the upper radiator hose and return hoses away from the cooling fan.

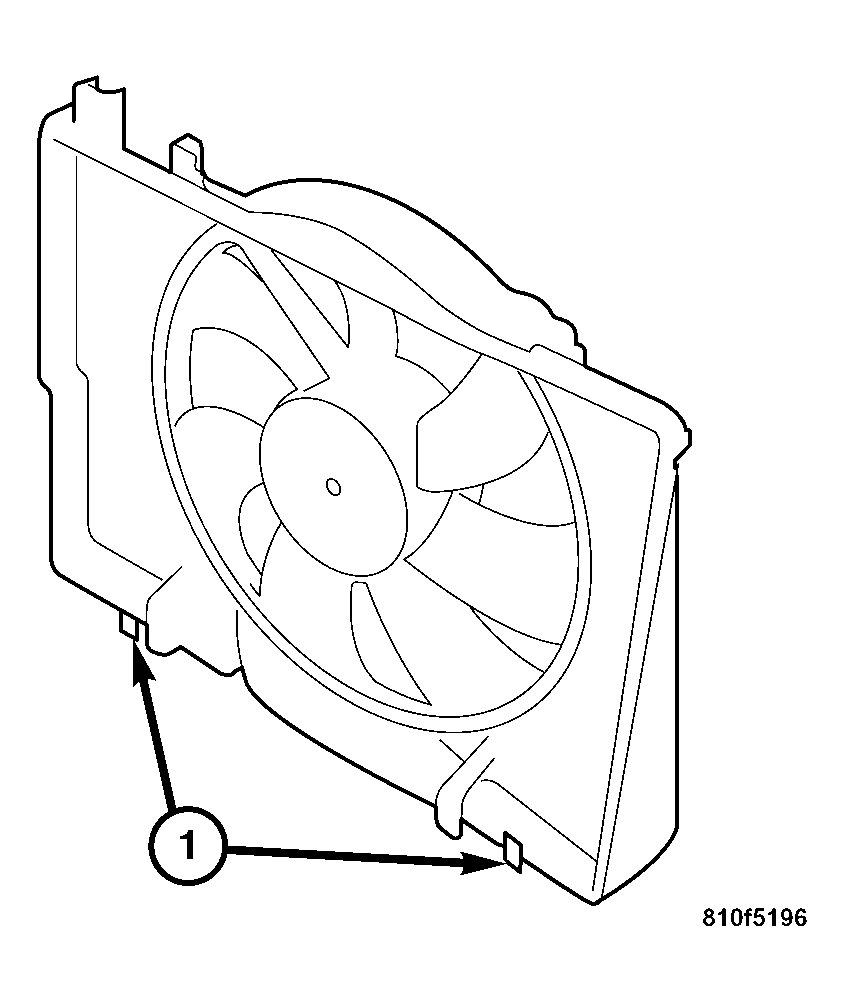

   Fig 2: Identifying Radiator Fan Locating Studs

   Courtesy of CHRYSLER LLC
3. Install the radiator fan locating studs (1) into the lower rubber mounts.

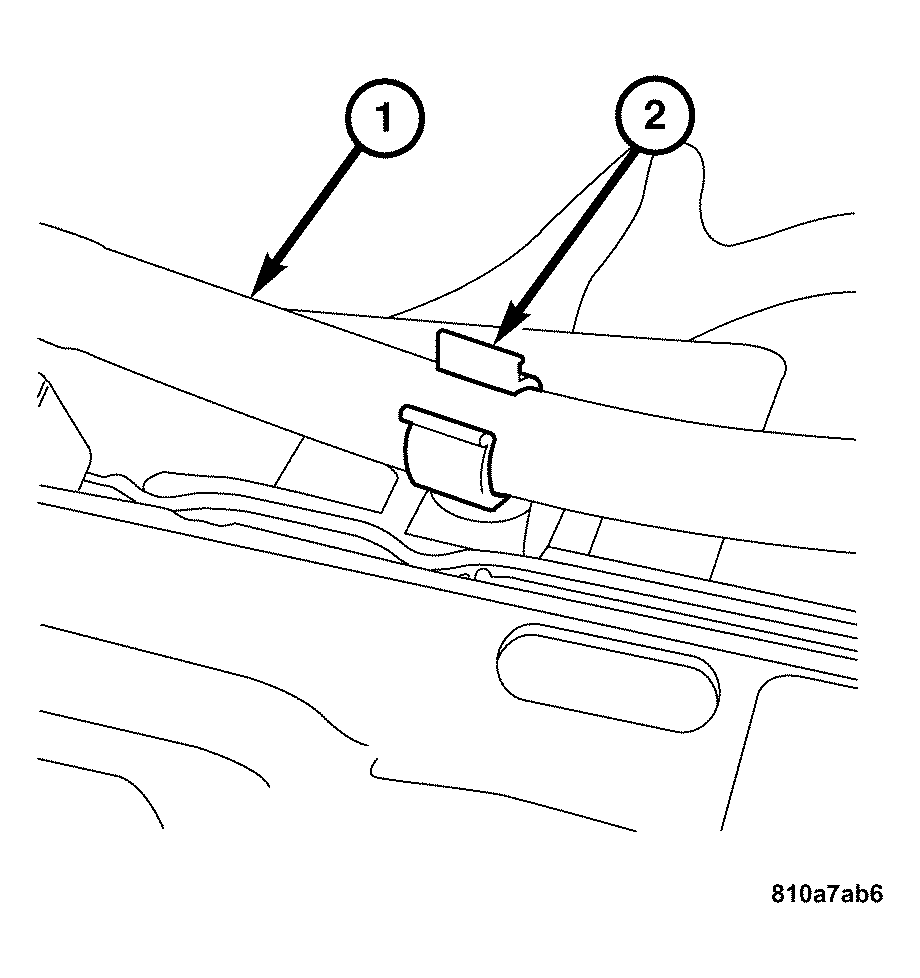

   Fig 3: Removing/Installing Radiator Retaining Clamps

   Courtesy of CHRYSLER LLC
4. Install the radiator fan hold down clamps (1).
   Fig 4: Removing/Installing Coolant Return Hose

   Courtesy of CHRYSLER LLC
5. Route the coolant return hose (1) through the bracket (2) on the radiator fan.

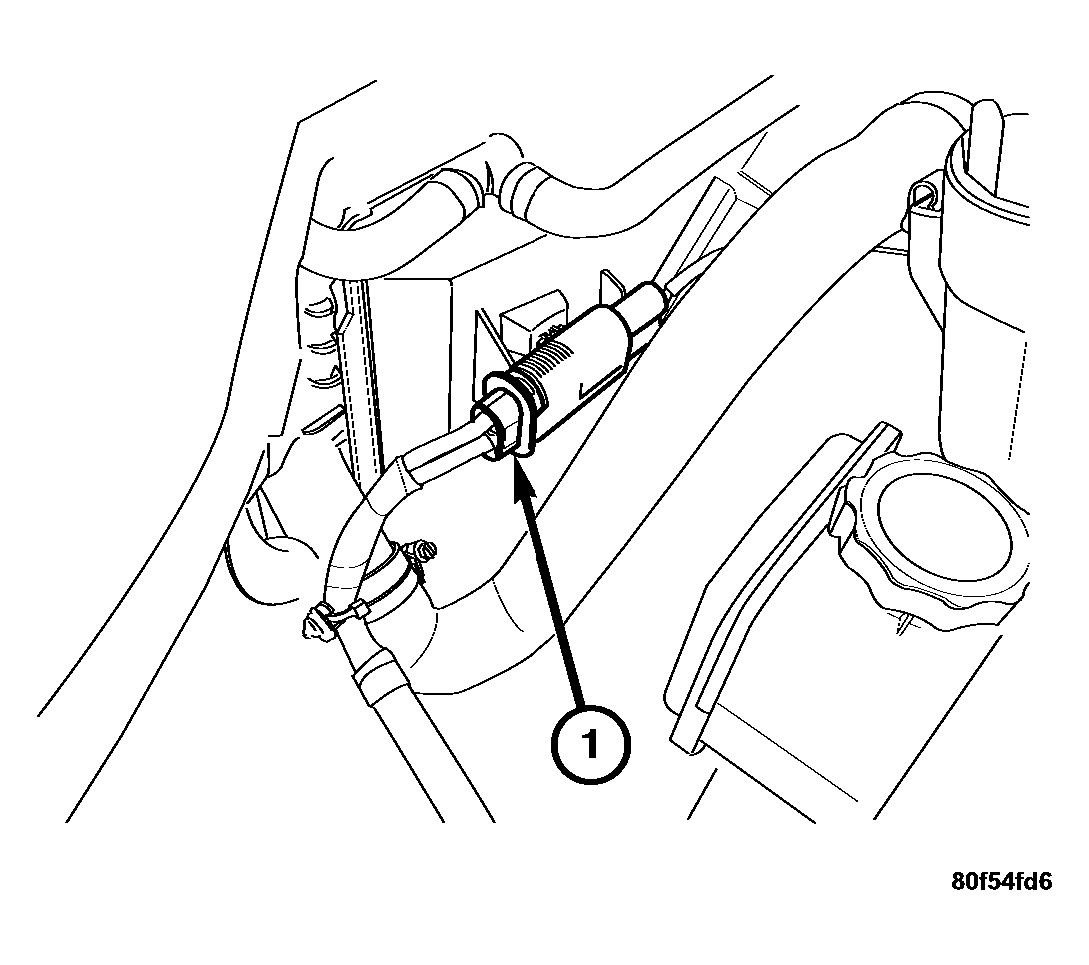

   Fig 5: Identifying Radiator Fan Harness Connector

   Courtesy of CHRYSLER LLC
6. Connect the radiator fan harness connector (1).
7. Connect the negative battery cable.
