Engine & Automatic Transmission Cooling System: Engine: Radiator: Installation: Installation

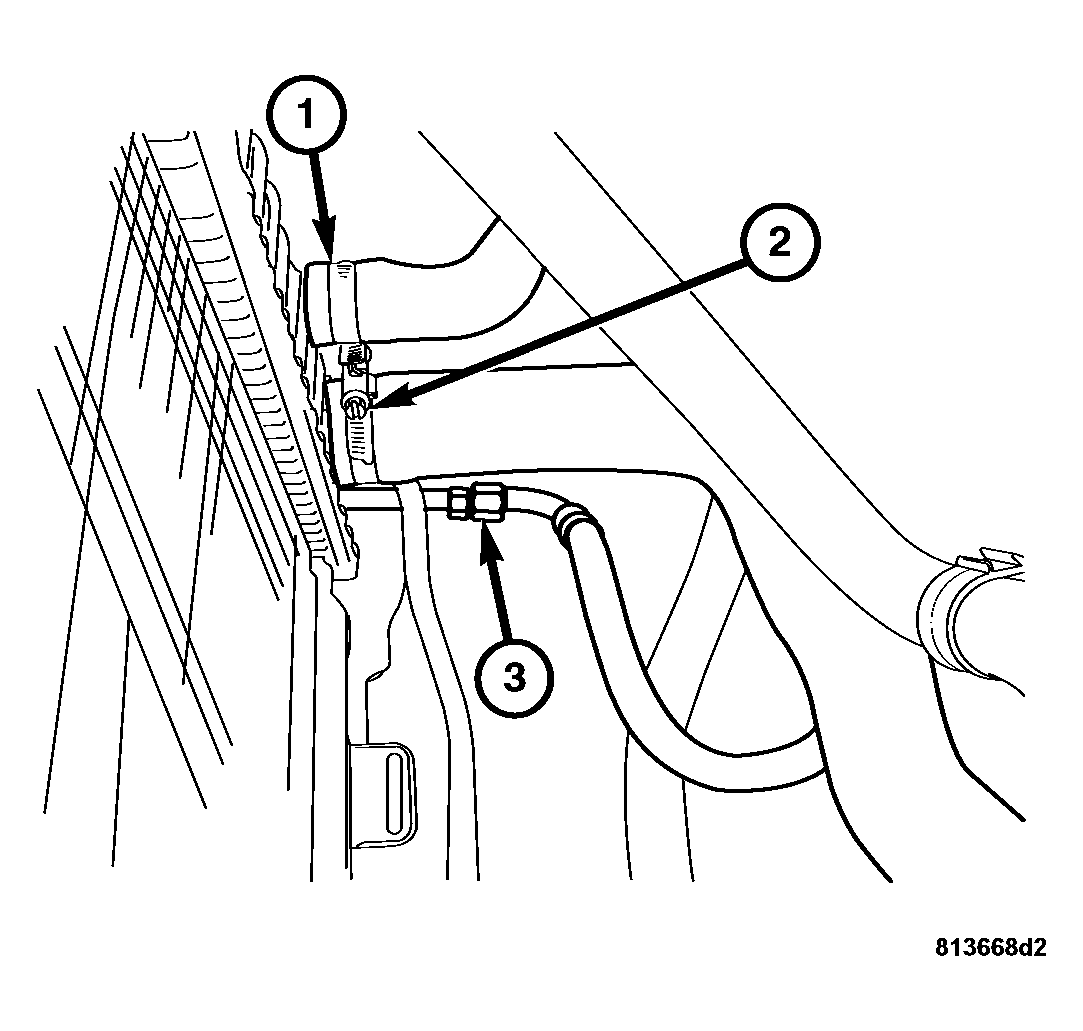

Fig 1: Identifying Coolant Recovery Reservoir Hose, Lower Radiator Hose & Transmission Cooler Line

Courtesy of CHRYSLER LLC

1. Carefully lower the radiator into the vehicle.
2. Connect the lower radiator hose (2).
3. Connect the coolant recovery reservoir hose (1).
4. Install the transmission cooler line (3) (automatic transmission only). Tighten the line to 10 N.m (89 in. lbs.).
   Fig 2: Disconnecting/Connecting Upper Radiator Hose

   Courtesy of CHRYSLER LLC
5. Connect the upper radiator hose (1).
   Fig 3: Identifying Transmission Cooler Line

   Courtesy of CHRYSLER LLC
6. Connect the transmission cooler line (1) located in the middle front of the vehicle (automatic transmission only). See INSTALLATION .

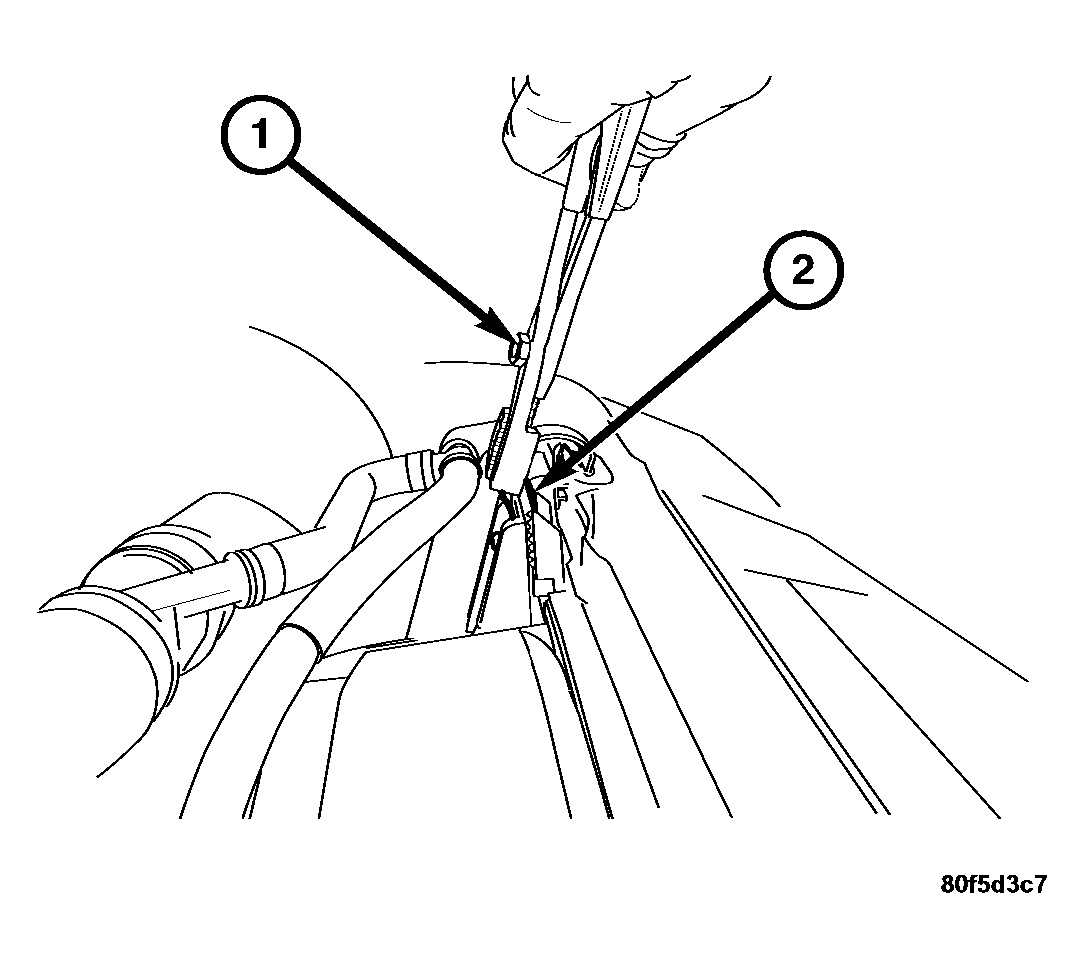

   Fig 4: Removing/Installing Radiator Retaining Clamps

   Courtesy of CHRYSLER LLC
7. Using a suitable tool (1) install the radiator retaining clamps (2).

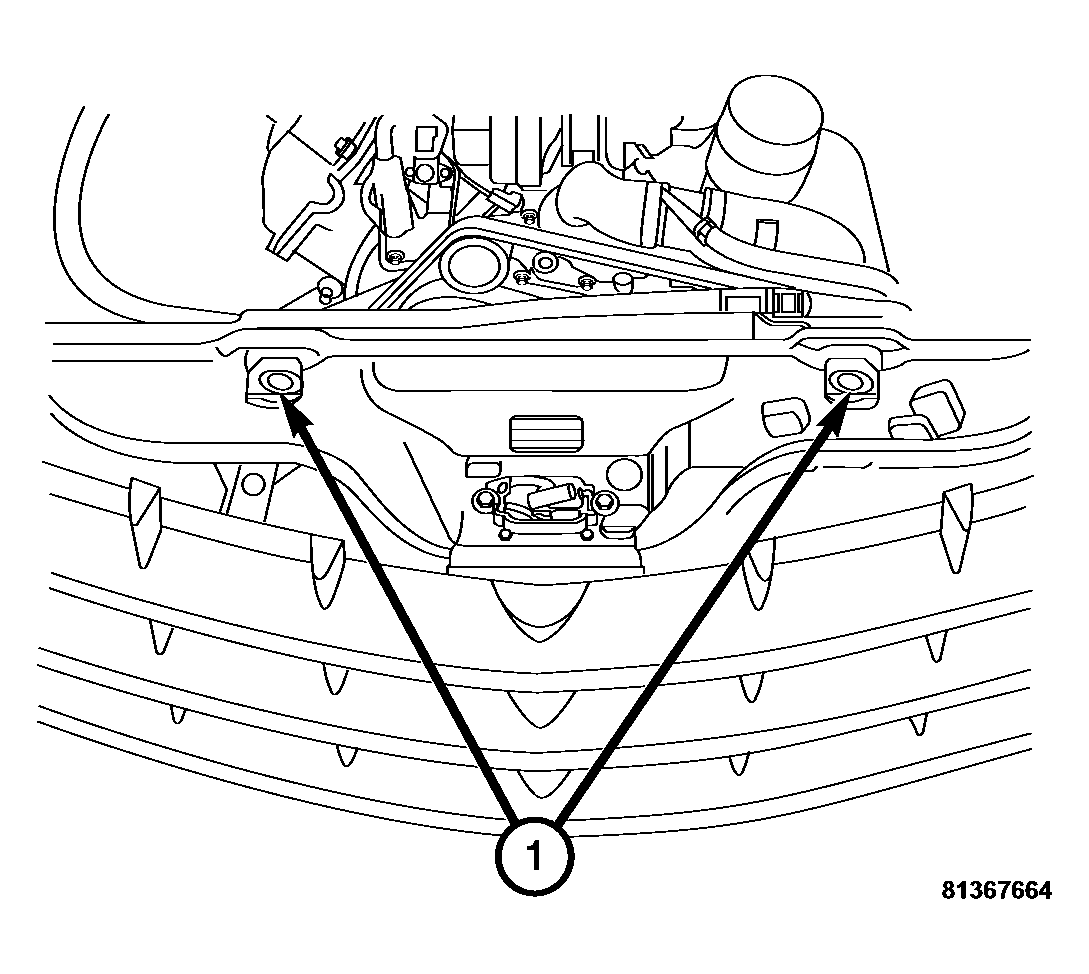

   Fig 5: Identifying Condenser Retaining Bolts

   Courtesy of CHRYSLER LLC
8. Install the two condenser retainer bolts (1) into the radiator support. Tighten the bolts to 10 N.m (89 in. lbs.).

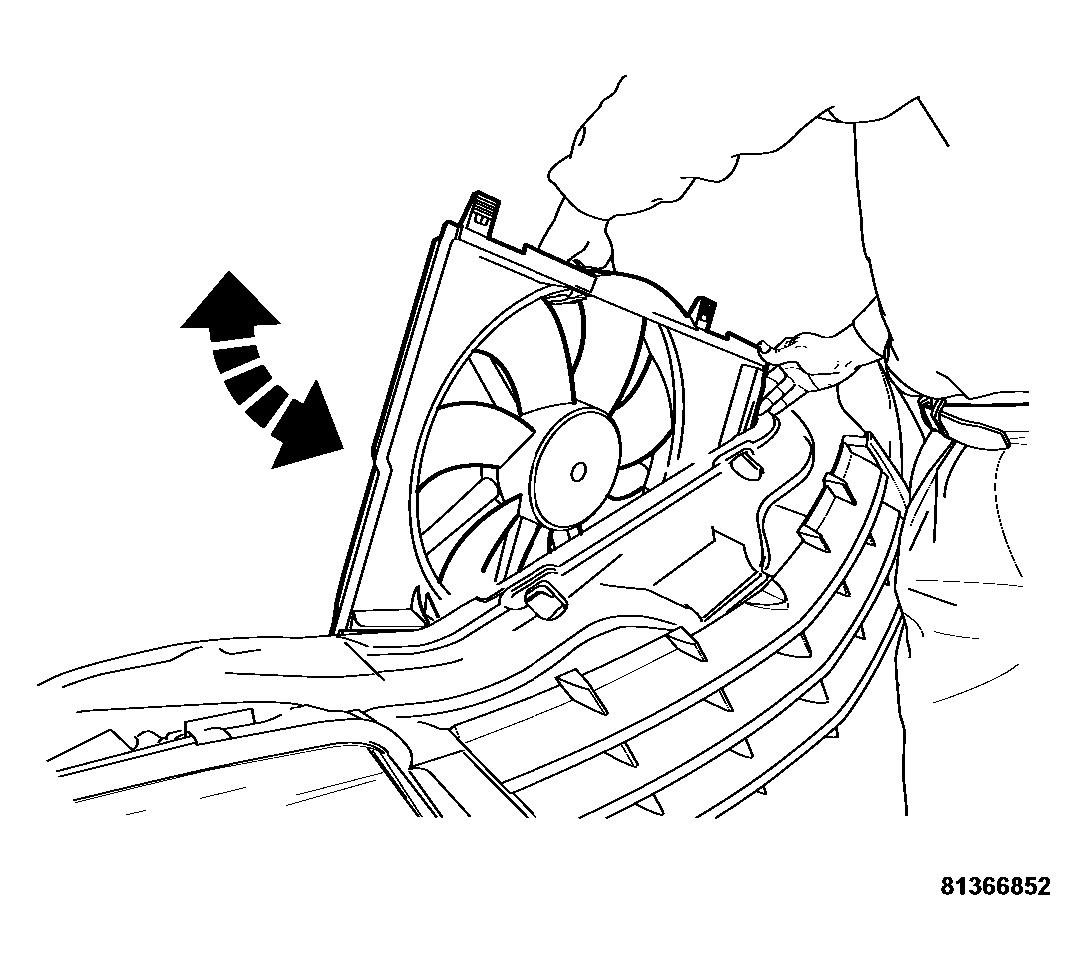

   Fig 6: Removing/Installing Radiator Fan

   Courtesy of CHRYSLER LLC
9. Install the radiator fan. See INSTALLATION .
10. Install the air inlet tubes.
11. Refill the cooling system. See STANDARD PROCEDURE .
12. Connect the negative battery cable.
13. Start the engine and check for coolant leaks.
14. Recheck the coolant level.
