Installation







INSTALLATION

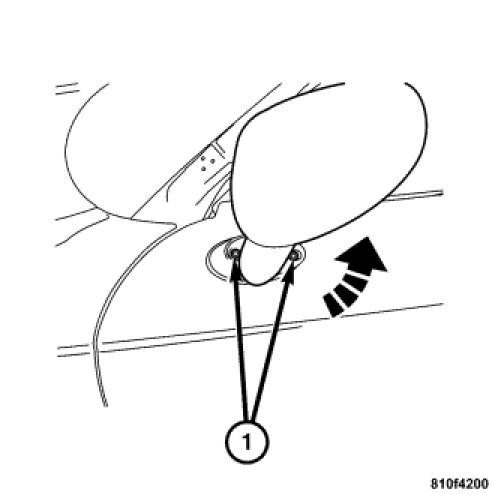

1. Install the two screws (1) attaching the mirror to the door.
2. Connect the sideview mirror harness connector.
3. Install the door interior trim panel. Door Trim Panel - Installation.
4. Rotate the mirror back to its rest position.
5. Connect the negative battery cable.
