Installation







INSTALLATION





1. Install the fluid reservoir to the master cylinder.

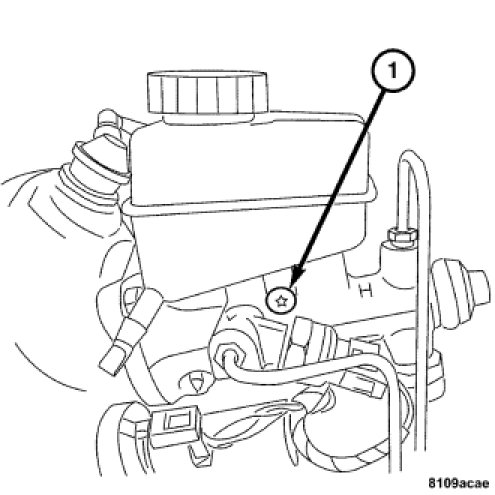

2. Install the screw (1) attaching the fluid reservoir to the master cylinder.
3. Connect the brake fluid level sensor harness connector.
4. Fill the reservoir with MOPAR(R) brake fluid to the proper level.
5. Bleed the braking system. Procedures. and Brake Bleeding.
