INSTALLATION

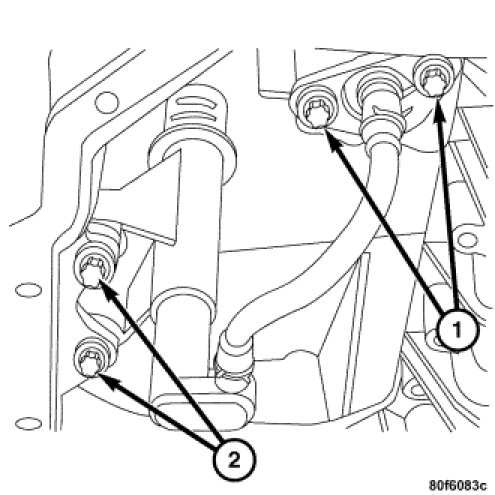

1. Position the oil level/temperature sensor in the upper oil pan with the screws (1).
2. Position the harness retainer in the upper oil pan with the screws (2).
3. Tighten all screws for the oil level/temperature sensor to 10 Nm (89 in. lbs.).

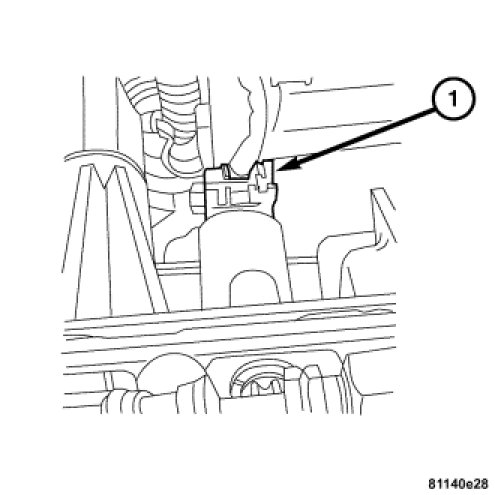

4. Connect the oil level/temperature sensor harness connector (1).
5. Install the lower oil pan. Engine Oil Pan - Installation.
